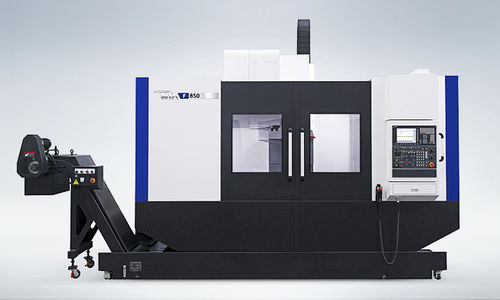

3-axis CNC machining center F850
verticalfor aluminumBT 40

3-axis CNC machining center - F850 - WIA - vertical / for aluminum / BT 40
3-axis CNC machining center - F850 - WIA - vertical / for aluminum / BT 40
3-axis CNC machining center - F850 - WIA - vertical / for aluminum / BT 40 - image - 2
3-axis CNC machining center - F850 - WIA - vertical / for aluminum / BT 40 - image - 3
3-axis CNC machining center - F850 - WIA - vertical / for aluminum / BT 40 - image - 4
3-axis CNC machining center - F850 - WIA - vertical / for aluminum / BT 40 - image - 5
3-axis CNC machining center - F850 - WIA - vertical / for aluminum / BT 40 - image - 6
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Machined material
for aluminum
Spindle mount
BT 40
Number of tool stations
24 tools
Applications
for aluminum plates, for sheet metal
Other characteristics
high-speed, high-productivity, direct-drive
X travel

1,600 mm
(62.99 in)

Y travel

850 mm
(33.46 in)

Z travel

850 mm
(33.46 in)

Rotational speed

12,000 rpm
(75,398 rad.min-1)

Power

10.5 kW, 25 kW
(14.28 hp, 33.99 hp)

Work feed X-axis

36,000 mm/min
(23.62 in/s)

Work feed Y-axis

36,000 mm/min
(23.62 in/s)

Work feed Z-axis

36,000 mm/min
(23.62 in/s)

Table load capacity

1,000 kg
(2,205 lb)

Description

Designed with advanced technology, Hyundai WIA’s Fast & Versatile Machining Center maximizes productivity Features Y-axis with 4 guideways for superb rigidity and smooth motion Roller Type LM Guide (130% increase in rated load compared to Ball Type)
