alphanumeric display / dot-matrix / 10 mm pitch / PROFIBUS

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
alphanumeric display alphanumeric display


  • Type:

    alphanumeric, dot-matrix

  • Features:

    10 mm pitch

  • Other characteristics:

    PROFIBUS, ProfiNet, wireless, wall-mounted, IP67

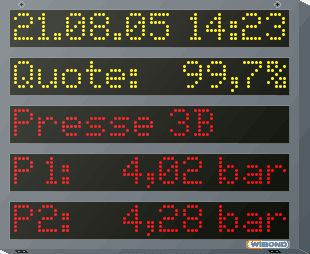

The WIBOND text display provides the ideal conditions for displaying texts and numbers:

Font height: from 38mm to 200mm
You can calculate the required lettering height in Reading distance.

Display width: any
The display width is based on the lettering height and the number of characters.

Digit height: any
The display height is based on the lettering height and the number of characters.

pixel size: 3 mm, 5 mm or 10 mm
In cost-effectiveness the WIBOND team recommends the optimal pixel diameter.

Interface: Ethernet, serial, Profibus, Interbus, PROFINET, analogue, pulse, BCD, wireless etc
In WIBOND large display interface, you will find the most commonly available control possibilities.

Other characteristics:

Luminous paint: red, gren, yellow or multicoloured

Design: single, double or multiple-sided

Fastening: wall, ceiling or to base

Supply voltage: 100 to 240 VAC or 24 VDC

Protection class: IP00 to IP67

Font sizes: up to 4

Fonts: up to 5

Display modes: up to 6

Character set: in accordance with ISO/IEC 8859

Screens: up to 4 freely definable

Fields: up to 8 freely definable, per screen

Paint finish: RAL7015, slate grey
