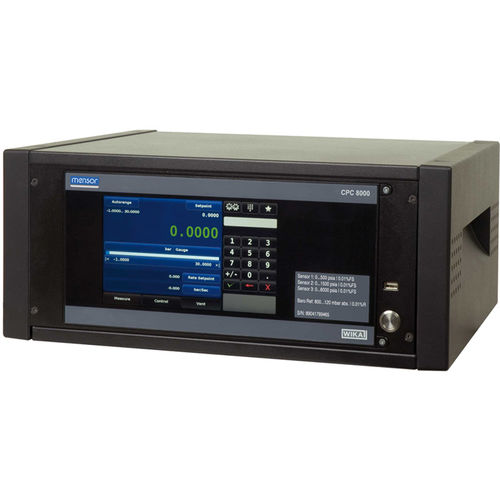

Pressure calibration pressure controller CPC8000

precision

Industry (laboratory, workshop and production) Transmitter and pressure gauge manufacturers Calibration service companies and service industry Research and development laboratories National institutes and institutions Special Features Up to three integrated, interchangeable reference pressure sensors Control stability 0.002 % of the span Accuracy down to 0.008 % IS (IntelliScale) Precision 0.004 % FS Description Mensor pressure controllers such as the CPC8000 have been part of the WIKA product range since 2006. Application The model CPC8000 high-end Mensor pressure controller is a premium accuracy instrument suitable as a calibration solution for various applications. Its outstanding control performance is particularly impressive, thanks to special, patented valve technology and the specific pressure sensor as a measuring unit. With this the Mensor pressure controller is suitable as a factory or working standard for the testing or calibration of any type of pressure measuring instrument. Design The CPC8000 is available as a desktop instrument or as a 19" rack-mounted kit. The sensors can be changed via the front, without taking out the complete controller (e.g. out of a calibration rig). Functionality Maximum ease-of-use of the Mensor pressure controller is achieved through the large touchscreen and the simple and intuitive menu navigation. In addition, its operability is further supported by the availability of a large number of menu languages.
