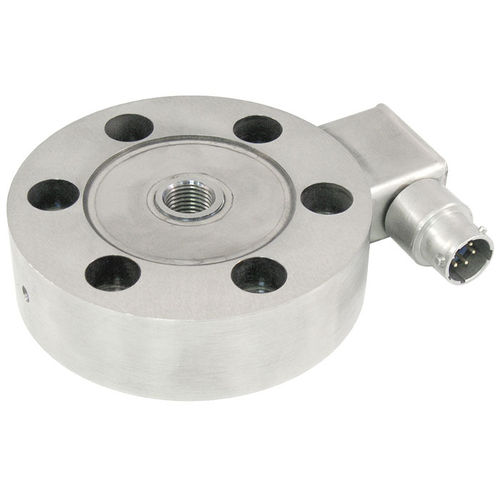

Tension/compression load cell F2222
pancake typehigh-precisionIP66

tension/compression load cell
tension/compression load cell
Add to favorites
Compare this product


Characteristics

Type
tension/compression
Form
pancake type
Other characteristics
high-precision, IP66, rugged
Rated force

Max.: 2,200 kN

Min.: 0 kN

Description

Applications Materials testing machinery Apparatus construction Production lines Measuring and inspection equipment Special equipment and machinery construction Special features Measuring ranges 0 ... 22 N up to 0 ... 2.200 kN (0 ... 5 Ibs up to 0 ... 500 klbs) Simple installation, low installation height High long-term stability, dynamic fatigue strength for load alternations Protection class IP66 Relative linearity error 0.1 % Fnom Description The tension/compressive force transducer is characterized by high accuracy and low installation height. It can be used in harsh industrial environments in laboratories or test field for static or dynamic measurement tasks. The force transducer has a bore through the center with internal thread, is splash-proof and works reliably even under difficult operating conditions. Note In order to avoid overloading, it is advantageous to connect the force transducer electrically during installation and to monitor the measured value. The force to be measured must be applied concentrically and free of transverse force. The force transducers are to be mounted on a level surface. Options Redundant design with second measuring bridge Load input elements available Extended temperature ranges Cable connection Integrated amplifier
