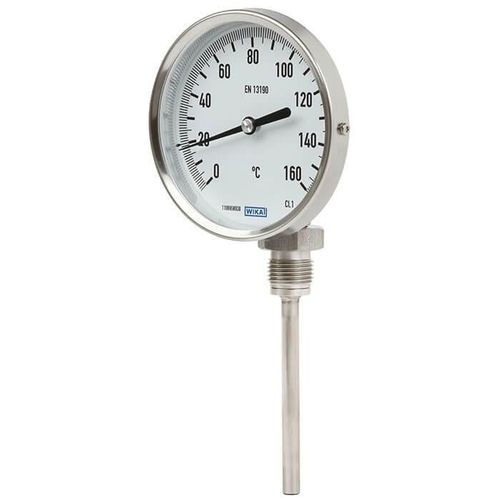

Bi-metal thermometer A52dial°CIP54
Add to favorites
Compare this product
Characteristics
- Technology
- bi-metal
- Display
- dial
- Units of measurement
- °C
- Protection level
- IP54, IP43
- Applications
- industrial, for aluminum
- Other characteristics
- stainless steel, special
- Temperature
Min.: -30 °C
(-22 °F)Max.: 500 °C
(932 °F)- Precision
5 %
- Dial diameter
Min.: 25 mm
(1 in)Max.: 160 mm
(6.3 in)
Description
A wide range of applications in machine building, vessel, piping and apparatus construction
Heating technology
Special features
Scale ranges from -30 ... +500 °C
Large choice of nominal sizes from 25 ... 160 mm
Case and stem from stainless steel
5 different connection designs
Description
The models A52, R52 bimetallic thermometers are the entrylevel model among process thermometers. The target markets of this thermometer are air-conditioning and machine building. Models A52, R52 are manufactured in accordance with EN 13190 and already offer a stainless steel case and accuracy class 1 for nominal sizes > 60 mm.
Especially noteworthy is the large number of stem lengths and nominal sizes. This enables the individual adaptation to the target applications.
