Resistance thermometer CTH7000

platinumPt100thermistor

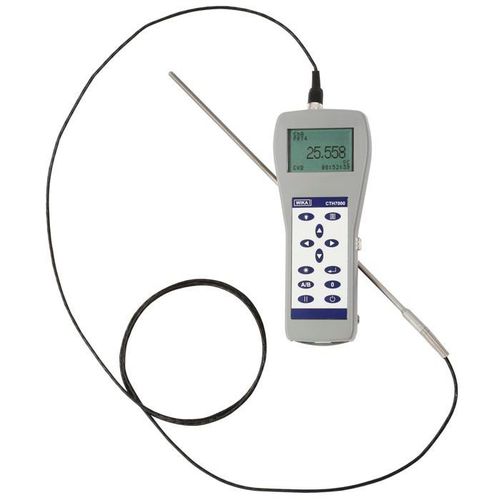

Precision thermometer for very accurate temperature measurements in a range of -200 ... +962 °C [-328 ... +1,764 °F] Reference instrument for testing, adjusting and calibrating temperature measuring instruments in factories and calibration laboratories Self-contained, complete system also suitable for on-site measurements/calibrations Special features Temperature range: -200 ... +962 °C [-328 ... +1,764 °F] Stability: < 0.005 °C per year Dual inputs measuring platinum resistance thermometers (PRTs) and thermistors single or differential measurement High long-term stability Description The model CTH7000 hand-held thermometer is a high performance 2-channel thermometer for Pt100 and thermistor probes. The hand-held thermometer CTH7000 is a step up in measurement accuracy with a battery power. The CTH7000 can handle all needs, with accuracies and resolutions normally associated with a bench top thermometer. Two inputs give direct temperatures from Pt100 or thermistor probes or can display the temperature difference between them. Measurements can be logged directly to memory or, use the USB port to control and data log with the PC. The CTH7000 will display a statistical analysis of measurements, with average value, min and max values and standard deviation. Because the CTH7000 will display in ohms as well as temperature, it can even be used to calibrate one probe against another. Most instruments require to enter calibrated probe data into memory to optimise measurement accuracy, which can mean a lot of data entering if you change probes regularly.
