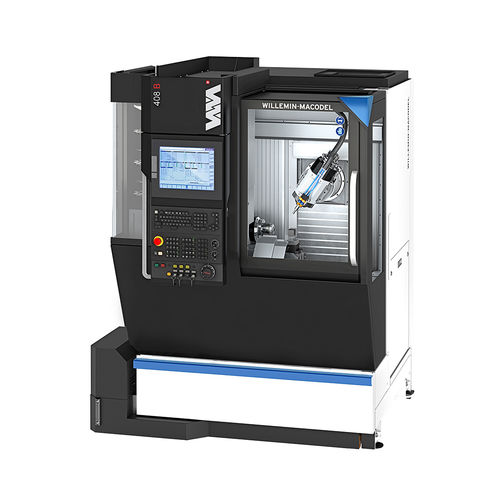

5-axis CNC machining center 408B 6-axis7-axisvertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis, 6-axis, 7-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E40, HSK A- 40
- Number of tool stations
- 48 tools
- Applications
- medical
- Other characteristics
- milling, high-power, precision
- X travel
250 mm
(10 in)- Y travel
200 mm
(8 in)- Z travel
310 mm
(12 in)- Rotational speed
30,000 rpm, 42,000 rpm
(188,496 rad.min-1, 263,894 rad.min-1)- Power
10 kW, 15 kW
(13.6 hp, 20.39 hp)- Work feed X-axis
40,000 mm/min
(26 in/s)- Work feed Y-axis
40,000 mm/min
(26 in/s)- Work feed Z-axis
40,000 mm/min
(26 in/s)- Tool weight (max)
1 kg
(2.2 lb)- Tool-changing time
0.8 s
- Weight
2,100 kg
(4,629.71 lb)- Overall length
1,980 mm
(78 in)- Overall width
1,450 mm
(57.1 in)- Overall height
2,100 mm
(82.7 in)
Description
The 408B is a 5- to 7-axis machining center dedicated to machining parts with complex geometry from bar stock or in one-piece mode. It is equipped with a swiveling powered spindle fitted on a B-axis and an A-axis divider offering high angular resolution.
Benefiting from the latest technological developments and Willemin-Macodel's comprehensive expertise in high-precision machining, the 408B machining center is perfect for cutting-edge industries such as watchmaking, jewelery, medical, dental and precision contract machining.
OTHER CHARACTERISTICS
Machining of bars measuring up to Ø 40 mm
B-axis angular movement -15° to +100°
B-axis indexing from 0° - 90° in 0.2 sec
Acceleration of X Y Z linear axes, 8 m/s2
Tool magazine up to 72 positions
Back working vise, clamping force 400 N - 4,000 N
Optional coolant through spindle programmable up to 80 bar
Footprint approx 2.8 m2
