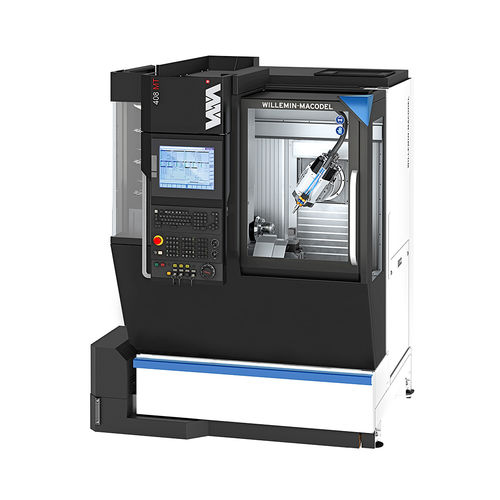

5-axis CNC machining center 408MT
verticalmillinghigh-precision

5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
Add to favorites
Compare this product

Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Other characteristics
milling, high-precision, medical, dental
X travel

250 mm (10 in)

Y travel

200 mm (8 in)

Z travel

300 mm (12 in)

Rotational speed

30,000 rpm, 42,000 rpm (188,496 rad.min-1)

Power

10 kW, 15 kW (13.6 hp)

Description

DESCRIPTION The 408MT is a multi-process machining center dedicated to machining parts with complex geometry from bar stock or slugs. It is equipped with a swiveling powered spindle fitted on a B axis and a high-precision A axis divider spindle enabling operations in turning mode up to 6000 rpm and in milling mode with high angular resolution. The machine can be equipped with an automatic back machining unit fitted on a U axis. This unit, which can house either a precision vice or grippers for internal or external clamping, is driven by an indexing movement which enables secondary machining of the cut face. The machining center can house pallets both on the A axis and on the back machining unit, ensuring rapid change-over times. Benefiting from the latest technological developments and Willemin-Macodel's comprehensive expertise in high-precision machining, the 408MT machining center is perfect for cutting-edge industries such as watchmaking, jewelry, medical, dental, and mechanical sub-contracting. OTHER CHARACTERISTICS Milling up to 42,000 rpm Powered spindle, from 0 - 30,000 rpm in 0.8 s HSK-E40 interface Turning on the A axis up to 6000 rpm Machining of bars measuring Ø 32 mm B axis angular movement -15° to +100° B axis, resolution 0.0001° Acceleration of X Y Z linear axes, 8 m/s2 Rapid feed rate of X Y Z linear axes, 40 m/min 48-position tool magazine with quick changer Tool change time 0.8 sec Fixture adjustment vice, clamping force 400 - 4000 N Central coolant programmable up to 80 bar Footprint approx 2.6 m2
