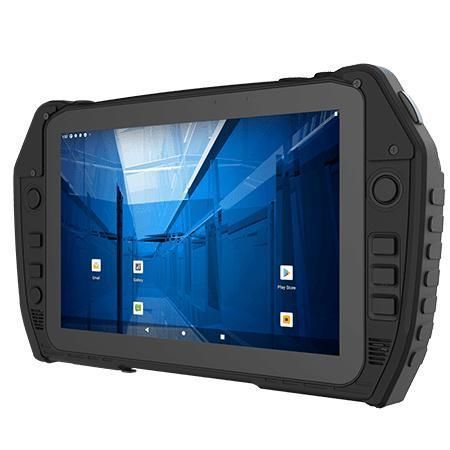

10.1" tablet TG101Q9

Android 13Qualcomm® QCM64908 GB

Overview
The Winmate TG101Q9 is a 10.1-inch rugged Android tablet controller designed for reliable operation in demanding industrial, field and mission-critical applications. It pairs a sunlight-viewable 1920 x 1200 IPS display with Qualcomm® 6490 processing, a removable battery, fanless cooling and an IP65-rated enclosure with MIL‑STD shock and vibration resistance.
Key Features

• 10.1" 1920 x 1200 IPS LED with direct optical bonding and AG+AF touch treatment
• Qualcomm® 6490 (Octa-Core 2.7 GHz) processor, 8 GB RAM, 128 GB storage
• Rugged design: IP65 ingress protection and MIL‑STD‑810H for shock and vibration
• Connectivity: Wi‑Fi 802.11a/b/g/n/ac/ax, BT 5.3, optional 4G/5G WWAN, GNSS (GPS/GLONASS)
• Removable 10.9 V, 6700 mAh Li‑Ion battery; fanless thermal design

Certifications

• CE
• FCC

Additional highlights
The TG101Q9 uses optical bonding and anti‑glare/anti‑fingerprint touch treatment to improve outdoor readability and reduce reflections. Ergonomic contours and well‑placed controls support secure handling in mobile and field operations. Optional GNSS and high‑speed wireless options enable real‑time data access and integration with robotic and transportation systems.
Display

• Size: 10.1 inches
• Resolution: 1920 x 1200
• Type: Projected Capacitive Multi Touch (PCAP)
• Panel Brightness: 800 nits
• Contrast Ratio: 800:1
• Viewing Angles: 85/85/85/85
• Bonding: Direct optical bonding for sunlight viewability
• Surface treatment: AG + AF

System Specification

• Processor: Qualcomm® 6490 (Octa‑Core 2.7 GHz)
• Memory: 8 GB
• Storage: 128 GB
• OS: Android 13.0
• WLAN: 802.11 a/b/g/n/ac/ax
• BT: 5.3
• WWAN: Optional 4G LTE / Optional 5G
• GNSS: GPS / GLONASS

Mechanical

• Dimensions: 317.75 x 188.87 x 35.8 mm
• Weight: 1.4 kg
• Cooling: Fanless design

IO Ports

• USB: 1 x USB 2.0 (Type‑A); 1 x USB 3.0 (Type‑C)
• Video: 1 x micro HDMI output
• Audio: 2 x speakers

Environment

• Operating humidity: 10% to 90% RH, non‑condensing
• Operating temperature: -20°C to 60°C (AC mode); -10°C to 50°C (battery mode)
• Storage temperature: -30°C to 70°C (-22°F to 158°F)
• Shock: MIL‑STD‑810H Method 516.8 Procedure I
• Vibration: MIL‑STD‑810H Method 514.8 Procedure I
• Ingress protection: IP65

Control

• Physical buttons: 8

Power

• Battery: 10.9 V, typ. 6700 mAh Li‑Ion removable (3S2P)
• Battery operating time: Standard battery ~10.5 hrs
• Power rating: 19 V DC
• Adapter: PD Adapter 100W

Accessories

• Included: 1 x PD Adapter 100W; 1 x Power Cord
• Optional: M10 push‑pull power cable (DC plug type); M10 push‑pull LAN (mutually exclusive with Microhard RF module); Microhard pMDDL2450 (mutually exclusive with LAN)

Technical specifications

• Model: TG101Q9
• Display: 10.1" 1920x1200 IPS, 800 nits, optical bonding
• CPU: Qualcomm® 6490 Octa‑Core 2.7 GHz
• RAM / Storage: 8 GB / 128 GB
• OS: Android 13.0
• Wireless: Wi‑Fi 802.11a/b/g/n/ac/ax, BT 5.3, optional 4G/5G, GNSS (GPS/GLONASS)
• Ruggedness: IP65, MIL‑STD‑810H (shock & vibration)
• Battery: Removable 10.9 V, 6700 mAh (~10.5 hrs)
• I/O: USB‑A, USB‑C (USB 3.0), micro HDMI, 2x speakers
• Dimensions / Weight: 317.75 x 188.87 x 35.8 mm / 1.4 kg
• Certifications: CE, FCC
