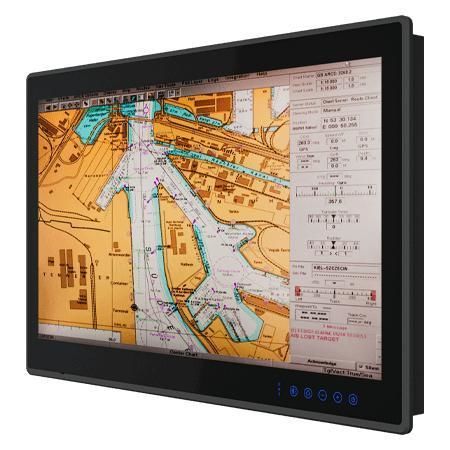

Multitouch screen panel PC W27IAD3S-MRA1FP

capacitive touch screenPCAP capacitive touch screen27"

Overview Winmate W27IAD3S-MRA1FP is a 27-inch flat PCAP ECDIS marine panel PC for certified navigation and industrial marine applications. It features a true-flat edge-to-edge display, fanless cooling, optional color calibration for IEC 61174 ECDIS compliance, optimized six-key OSD for DAY/DUSK/NIGHT modes and marine-grade connectivity and certifications.

Key Features

• 27-inch 1920 x 1080 projected capacitive multi-touch (PCAP) display
• Edge-to-edge narrow bezel, true-flat front for flush installation
• Fanless thermal design for reliable operation in marine environments
• Optional IEC 61174 color calibration for ECDIS compliance
• Capacitive touch keys and optimized 6-key OSD for quick function access (Day/Dusk/Night)
• Optional 4 x COM ports supporting NMEA 0183 with RS232/422/485 switchable
• Meets maritime standards: IEC60945 (4th), DNV-CG-0339, IACS E10
• Front-side IP66 rating and touch key lock support

Certifications

• IACS E10
• IEC60945 (4th Edition)
• DNV-CG-0339
• CE
• FCC

Product Highlights Color calibration is performed to meet ECDIS requirements for accurate nautical color reproduction. The optimized six-key OSD enables fast switching between DAY/DUSK/NIGHT display modes. The chassis uses an anodized aluminum bezel suitable for bridge consoles with flexible VESA or panel mounting options and a fanless architecture for long-term reliability.

Connectivity and I/O

• 2 x RJ45 (Intel® Ethernet controllers)
• 2 x USB 3.0 and 1 x USB 2.0 (optional)
• Optional HDMI video output
• Optional isolated 4-channel digital I/O
• Optional serial ports: RS232 default, RS422/485 switchable; additional RS232 optional; NMEA 0183 support on COM ports
• Front controls: Power, Brightness +/-, Menu, Function key (default ECDIS mode)

Environmental and Mechanical

• Front IP rating: IP66
• Operating humidity: 5% to 95%
• Operating temperature: -15 to 55 °C
• Shock: 15G, 11 ms
• Vibration: 0.7g per DNV-CG-0339 (Class A)
• Dimensions: 665 x 432.4 x 85.5 mm; Cut-out: 632 x 394 mm; Weight: 12.8 kg
• Mounting: VESA mount and panel mount
• Enclosure: Anodized aluminum bezel; Fanless cooling

Included and Optional Accessories

• Standard: User manual, 12V AC-to-DC adapter with 3-pin terminal block, power cord, mounting screws
• Optional: Terminal blocks for NMEA ports, removable 2.5" SSD/HDD, isolated DIO modules, HDMI cable

Technical specifications

• Display: 27.0 inches, 1920 x 1080, Projected Capacitive Multi-Touch (AR coating; AG film or AR glass optional); brightness 300 nits; contrast 3000:1; active area 597.6 x 336.15 mm; viewing angles 89/89/89/89
• Processor: Intel® Core™ i5-1335U up to 4.60 GHz
• Memory: 1 x SO-DIMM DDR5 4800 MHz; 8GB standard; 16GB/32GB optional
• Storage: 1 x M.2 2280 M-Key NVMe SSD 128GB standard; options 256GB/512GB/1TB/2TB; optional 2.5" removable SSD/HDD
• Ethernet: 2 x Intel® Ethernet controller (2 x RJ45)
• OS: Windows 11 IoT Enterprise 64-bit (optional), Windows 11 Pro 64-bit (optional), Windows 10 IoT Enterprise 64-bit (optional), Linux Ubuntu 22.04 (optional; Wake on Touch not supported)
• Buzzer: 75–80 dB at 2300 Hz measured at 1 m
• IP rating: IP66 front side
• Certifications: CE, FCC, DNV-CG-0339, IEC60945 (4th), IACS E10
• Power: 24V DC-in with isolation (certified); accepts 9–36V DC input; typical power consumption 75W
