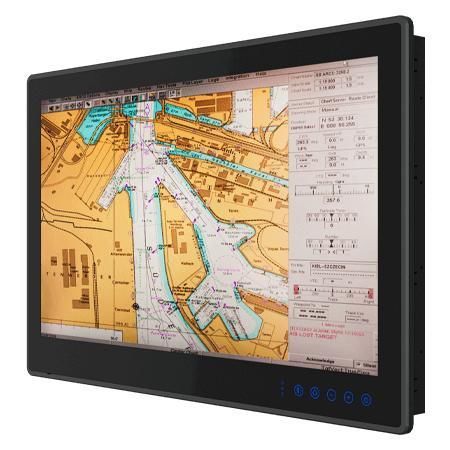

Multitouch screen panel PC W24IAD3S-MRA2FP

touch screenPCAP capacitive touch screen23.8"

Overview

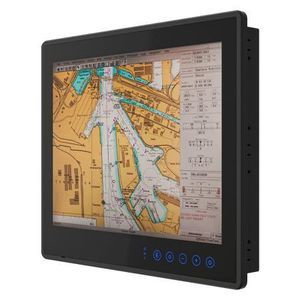

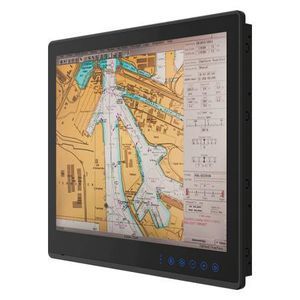

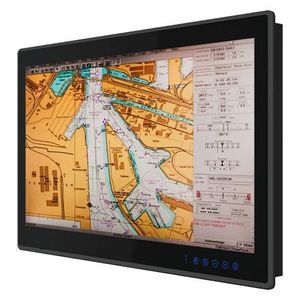

Winmate W24IAD3S-MRA2FP is a 24-inch ECDIS marine panel PC engineered for certified bridge and navigation systems. It features a true-flat edge-to-edge projected capacitive (PCAP) multi-touch display, fanless thermal design and rugged construction with front-side IP66 protection. Color calibration and marine-grade testing ensure compliance with ECDIS and international maritime standards.

Key features

• 23.8" 1920 x 1080 PCAP multi-touch display, 250 nits, AR coating (AG film / AR glass optional)
• True-flat edge-to-edge narrow bezel design and fanless cooling
• Optional color calibration for IEC 61174 (ECDIS) compliance
• Capacitive touch keys for quick ECDIS DAY / DUSK / NIGHT mode switching
• Optional 4 x COM ports supporting NMEA 0183; serial ports switchable RS232/422/485 via software
• Meets marine standards: IEC 60945 (4th), DNV‑CG‑0339, IACS E10
• Supports touch key lock and touchscreen lock functions

Certifications

• IACS E10
• IEC 60945 (4th Edition)
• DNV‑CG‑0339
• FCC
• CE

Certified marine computing solutions
Devices are certified and tested to meet DNV‑CG‑0339, IEC 60945 and IACS E10 requirements. Internal verification ensures reliable operation under shock, vibration and maritime environmental conditions.

Effortless control
The front panel includes optimized capacitive OSD keys for fast DAY/DUSK/NIGHT mode switching and central control functions to simplify bridge operations.

Precision color calibration
Color settings can be calibrated to IEC 61174 (ECDIS) standards to provide accurate color rendering required for navigation displays.

Comprehensive marine connectivity
Connectivity includes 2 x RJ45 Ethernet, USB 3.0 / optional USB 2.0, optional HDMI, optional isolated 8-channel DIDO, optional 4 x NMEA 0183 ports and software-switchable serial interfaces for flexible integration with marine sensors and systems.

Technical specifications

• Model: W24IAD3S-MRA2FP
• Display: Projected capacitive multi-touch (AR coating); AG film / AR glass optional
• Size / Resolution: 23.8"; 1920 x 1080; Brightness: 250 nits; Contrast: 3000:1; Active area: 527.04 x 296.46 mm
• Processor: Intel® Core™ i5-1335U (3.4 GHz, Turbo up to 4.60 GHz)
• Memory: 1 x SO-DIMM DDR5 4800 MHz, 8GB standard (options: 16GB, 32GB)
• Storage: 1 x M.2 2280 M-Key NVMe SSD 128GB standard (optional up to 2TB); expansion: 1 x 2.5" removable SSD/HDD
• Ethernet: 2 x Intel® Ethernet controllers (2 x RJ45)
• OS options: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Windows 10 IoT Enterprise 64-bit, Linux Ubuntu 22.04 (Wake on Touch not supported)
• Buzzer: 75–80 dB, 2300 Hz @ 1 m
• Environment: Humidity 5%–95%; Operating temp -15°C to 55°C; Shock 15G 11 ms; Vibration 0.7g per DNV‑CG‑0339 (Class A); IP66 front
• Certifications: CE, FCC, DNV‑CG‑0339, IEC 60945 (4th), IACS E10
• IO: 2 x USB 3.0; 1 x USB 2.0 (optional); Serial: 1 x RS232 (default) switchable to RS422/485 + 1 x RS232 optional; LAN: 2 x RJ45; Video: 1 x HDMI (optional)
• DIDO: 8-channel isolated digital I/O (optional); NMEA: optional 4 x NMEA 0183 ports
• Front controls: Power, Brightness +/-, Menu, Function key (default: ECDIS mode); Indicators: Day/Dusk/Night
• Mechanical: Dimensions 595 x 385 x 73.8 mm; Cut-out 570 x 360 mm; Weight 10.3 kg; Mounting: VESA / Panel mount; Enclosure: Anodized aluminum bezel; Cooling: Fanless
• Power: 24V DC-in with isolation (certificate-approved); accepts 9–36V DC; Typical consumption 65 W
• Accessories: User manual; 12V AC to DC adapter with 3-pin terminal block; power cord; M4 screws; optional 5-pin terminal block for NMEA
