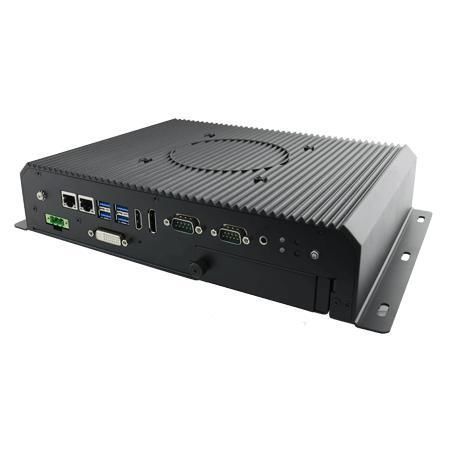

EDGE PC I330EAC-ITW

embeddedIntel® Core™ i5-1135G7RS-232

Overview
Industrial marine-graded embedded IoT computer designed for shipboard and offshore applications. Provides fanless cooling, power ignition control, removable 2.5" SSD bays and comprehensive I/O for navigation, automation and communication systems.

Key Features

• Intel® Tiger Lake Core™ i5-1135G7
• 4GB DDR4L (2 x SO-DIMM, up to 32GB)
• Removable 2.5" SSD drive bay and M.2 NVMe (M-Key 2280) support
• Multi video output: DVI / DisplayPort (HDMI optional)
• Isolation power protection 1.5 kV; accepts 24V DC (9–36V range)
• 8 x NMEA 0183 ports; 8 x Isolated DIDO (4 In / 4 Out)
• RS-232/422/485 serial ports with isolation

Certifications

• DNVGL-CG-0339
• IEC 60945 (4th)
• IACS E10
• CE
• FCC

Product Highlights

• Fanless thermal design with heat-sink/heat-pipe options for sustained operation in harsh marine environments.
• Robust field connectivity via isolated serial interfaces and dual Intel Gigabit LAN (I219-LM / I225-LM).
• Flexible storage and maintenance: M.2 NVMe plus removable 2.5" SSD/HDD bays for data logging and easy replacement.

Technical specifications

• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 2 x SO-DIMM, DDR4 3200 MHz; default 4GB (options: 8GB / 16GB / 32GB)
• Storage: 1 x M.2 M-Key 2280 NVMe SSD 128GB default (options up to 4TB); removable 2.5" SSD/HDD (optional, up to 2 bays)
• Ethernet: 2 x Gigabit LAN (Intel® I219-LM / I225-LM)
• USB: 4 x USB 3.0
• Serial: 2 x RS232/422/485 (isolated)
• Video: 1 x DVI; 1 x DisplayPort (default); 1 x HDMI (optional)
• Audio: 1 x 3.5mm audio combo jack
• DIDO: 8 x Isolated DIDO (4 In / 4 Out)
• NMEA: 8 x NMEA 0183 ports
• Operating temperature: -15°C to 55°C; Humidity: 5%–95%
• Shock: 15G, 11ms; Vibration: 0.7g (per DNV-CG-0339 Class A)
• Dimensions: 316.44 x 206.8 x 62.1 mm (with mounting); Weight: 3.9 kg
• Enclosure: Aluminum; Cooling: Fanless
• Power: 24V DC input (certified); accepts 9–36V DC; Consumption: 50W
• Buttons: 1 x Power; 1 x Reset
• Accessories: Quick Start Guide, Power Cord, Open Wire Cable, AC Adapter 12V/84W
