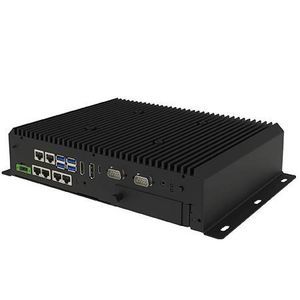

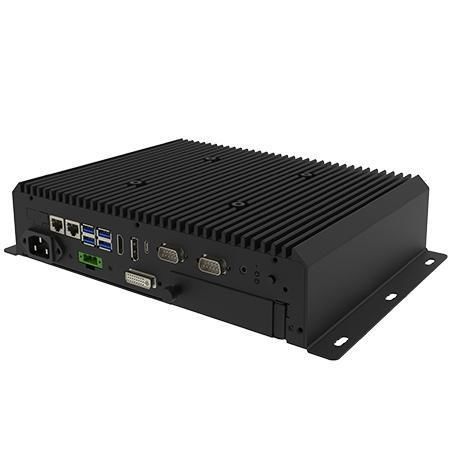

EDGE computer I330EAC-IMT

embeddedIntel® Core™ Ultra 5 125URS-232

Overview
The I330EAC-IMT is a marine-grade embedded computer powered by the Intel® Core™ Ultra 5 125U. Engineered for shipboard automation, bridge consoles, navigation control, maritime edge computing and offshore monitoring, it combines fanless cooling, removable 2.5" SSD serviceability, wide input power acceptance and a rugged aluminium chassis for reliable operation at sea.

Key Features

• Intel® Core Ultra 5 125U
• Removable 2.5" SSD drive bay (serviceable)
• Multi-video output: DVI / HDMI / DisplayPort
• Isolation power protection 1.5 kV
• 4 × Digital Input / 4 × Digital Output (Isolated DIDO)
• 8 × NMEA 0183 ports

Certifications

• CE
• FCC
• DNV-CG-0339
• IEC 60945 (4th)
• IACS E10

Product Details
Compact fanless marine embedded PC designed for harsh maritime environments. Supports stable operation across a wide temperature and humidity range and offers robust I/O for integration with navigation instruments and marine sensors. The removable SSD bay enables fast service and replacement, while isolated power protection increases reliability on unstable ship power systems.

Technical specifications

• Model: I330EAC-IMT
• Processor: Intel Core Ultra 5 125U 2.1GHz (up to 4.3GHz)
• Memory: 4GB (default); optional 8GB, 16GB, 32GB
• Storage: 1 × M.2 M-Key 2280 NVMe SSD 128GB (default); options up to 4TB. Removable 2.5" SSD bay; optional 2 × 2.5" removable SSD/HDD
• Ethernet: 2 × Intel® Ethernet Connection I226-X2 (2 × Gigabit LAN)
• OS: Optional Windows 11 IoT Enterprise LTSC (64-bit) or Windows 10 IoT Enterprise (64-bit)
• Operating humidity: 5% to 95%
• Operating temperature: -15°C to 55°C
• Shock: 15G, 11 ms
• Vibration: 0.7g @ DNV-CG-0339 (Class A)
• USB: 4 × USB 3.0 Type-A, 1 × USB 3.0 Type-C
• Serial: 2 × RS232/422/485
• Video: 1 × DVI, 1 × DisplayPort (default), 1 × HDMI (optional)
• Audio: 1 × 3.5 mm combo jack
• DIDO: 8 × isolated DIDO (4 In / 4 Out)
• NMEA: 8 × NMEA 0183 ports
• Dimensions: 316.44 × 206.8 × 66.1 mm (with mounting)
• Weight: 3.9 kg
• Mounting: Table mount
• Enclosure: Aluminum, fanless
• Power: 24V DC input (certified); accepts 9–36V DC; optional 115/230 VAC
• Power consumption: 50W
• Controls: 1 × Power Button, 1 × Reset Button
• Accessories: Quick Start Guide, Power Cord, Open Wire Cable, AC Adapter 12V/84W
