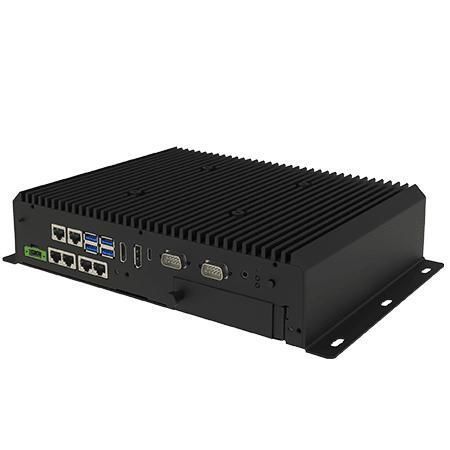

Box PC I330EAC-IMT-6L

embeddedIntel® Core™ UltraRS-232

Overview

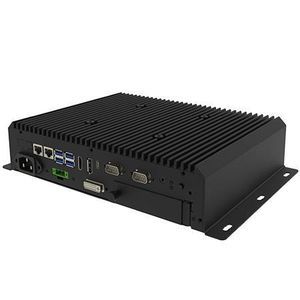

The Winmate I330EAC-IMT-6L is a rugged marine embedded computer designed for shipboard automation, maritime networking, vessel monitoring, bridge systems and marine-grade edge computing. Powered by Intel® Core™ Ultra 5 (125U), the system provides reliable edge performance in harsh marine environments with anti-vibration metal housing, fanless cooling, and removable storage for easy serviceability.

Key Features

• Intel® Core Ultra 5 125U processor
• Removable 2.5" SSD drive bay
• Multi-video output: DVI / HDMI / DisplayPort
• 1.5KV isolation power protection
• 6 x Gigabit LAN ports
• Fanless design for quiet cooling and reduced ingress risk

Certifications
CE, FCC, DNV-CG-0339, IEC 60945 (4th), IACS E10

Design & Durability
Closed-design aluminum housing with anti-vibration and compression features. Built to withstand wide temperature ranges and marine vibration/shock requirements for reliable shipboard operation.

System Highlights

• Processor: Intel Core Ultra 125U (2.1GHz base, up to 4.3GHz)
• Memory options: 4GB (default); 8GB / 16GB / 32GB optional
• Storage: 1 x M.2 M-Key 2280 NVMe SSD (128GB default); optional 256GB / 512GB / 1TB / 2TB / 4TB
• Ethernet: 2 x Intel® Ethernet Connection I226-X2 + additional LANs to total 6 x GbE
• Operating system: Windows 11 IoT Enterprise LTSC (64-bit) optional; Windows 10 IoT Enterprise (64-bit) optional

Environment & Reliability

• Operating humidity: 5% to 95%
• Operating temperature: -15°C to 55°C
• Shock: 15G, 11ms duration
• Vibration: 0.7g @ DNV-CG-0339 (Class A)

I/O & Expansion

• USB: 4 x USB 3.0 Type-A, 1 x USB 3.0 Type-C
• Serial: 2 x RS232/422/485
• LAN: 6 x Gigabit LAN
• Video: 1 x DisplayPort (default); HDMI output optional; supports DVI/HDMI/DisplayPort multi-video configurations
• Audio: 1 x 3.5mm audio combo jack
• Expansion: 2 x 2.5" removable SSD/HDD (optional)

Mechanical

• Dimensions: 316.44 x 206.8 x 66.1 mm (with mounting)
• Weight: 3.9 kg
• Mounting: Table mount
• Enclosure: Aluminum
• Cooling: Fanless design

Power

• Power rating: 24V DC input (approved by certificate)
• Acceptable input range: 9 ~ 36V DC
• Consumption: 50W
• Protection: 1.5KV isolation power protection for surge/voltage fluctuation resilience

Control & Accessories

• Buttons: 1 x Power Button, 1 x Reset Button
• Accessories (standard): Quick Start Guide, Power Cord, Open Wire Cable, AC Adapter 12V / 120W

Applications & Use Cases

• Shipboard automation and vessel control systems
• Marine network gateway, data routing and onboard communication
• Bridge console computing and multi-monitor control rooms
• Offshore platform monitoring and maritime edge computing
• Port, harbor and coastal monitoring systems

Product FAQs (selected)

• Processor: Intel® Core™ Ultra 5 125U
• Network: 6 x LAN ports for extensive onboard networking
• Power handling: 1.5KV isolation protects against unstable marine power
• Video outputs: Supports DVI / HDMI / DisplayPort for multi-display setups
• Storage serviceability: Removable 2.5" SSD bay for quick drive swap and maintenance
• Durability: Rugged marine-grade construction to withstand sea conditions, vibration and temperature changes

Caractéristiques / Spécifications techniques

• Model: I330EAC-IMT-6L
• Brand: Winmate
• Processor: Intel Core Ultra 125U (2.1 GHz up to 4.3 GHz)
• Memory: 4GB default; options: 8GB / 16GB / 32GB
• Storage: M.2 NVMe 2280 (128GB default); optional up to 4TB; removable 2.5" SSD bay(s) optional
• Ethernet controller: 2 x Intel® I226 + total 6 x GbE LAN
• USB: 4 x USB 3.0 Type-A, 1 x USB 3.0 Type-C
• Serial: 2 x RS232/422/485
• Video: DisplayPort (default), HDMI optional, supports DVI/HDMI/DP
• Audio: 1 x 3.5mm audio combo jack
• Power: 24V DC in (certified); accepts 9–36V DC; consumption 50W; 1.5KV isolation protection
• Dimensions: 316.44 x 206.8 x 66.1 mm (with mounting)
• Weight: 3.9 kg
• Operating Temp: -15 ~ 55°C
• Operating Humidity: 5%–95%
• Shock: 15G, 11 ms
• Vibration: 0.7g @ DNV-CG-0339 (Class A)
• Certifications: CE, FCC, DNV-CG-0339, IEC 60945 (4th), IACS E10
• Enclosure: Aluminum; Cooling: Fanless
• Mounting: Table mount
• Buttons: Power and Reset
• Included Accessories: Quick Start Guide, Power Cord, Open Wire Cable, AC Adapter 12V/120W
