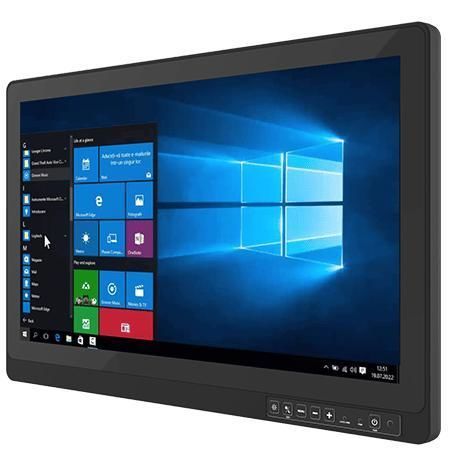

PCAP touchscreen panel PC W22IAD3S-67B2-P(HB)

multitouch screentouch screen21.5"

Overview
The Winmate G‑WIN 21.5-inch Full IP67 P-Cap Panel PC model W22IAD3S-67B2-P(HB) is an industrial-grade panel PC designed for harsh environments. It features a true-flat edge-to-edge P-Cap touch display, full IP67 dust and water protection, aluminum die-cast housing with anti-corrosion treatment, fanless passive cooling and wide 9–36V DC isolated power input with optional ignition delay and intelligent heater for extended low-temperature operation.

Key features

• 12th Gen Intel® Core™ i5-1235U processor
• 21.5-inch Full HD display (1920 x 1080), 1000 nits
• Projected capacitive multi-touch with optical bonding (True Flat)
• Optional anti-reflective protection glass with optical bonding
• Full IP67 dust- and water-proof design with VESA mount
• Aluminum die-casting housing with Surtec 650 / polyester powder coating corrosion treatment
• Built-in ambient light sensor and Day/Night mode controls
• Wide operating temperature: -10°C to 55°C (extended -40°C to 55°C with intelligent heater)
• Wide 9–36V DC isolated input (M12); optional Ignition On/Off delay

Certifications

• IP67
• FCC
• CE

Additional product information
True-flat edge-to-edge design simplifies cleaning and prevents liquid ingress. Fanless passive cooling reduces noise and power consumption while improving reliability. Robust industrial I/O with waterproof M12 and waterproof RJ45 connectors ensure secure connections in wet, dusty or mobile applications. Configurable memory, storage and OS options (Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 22.04) support a wide range of industrial deployments.

Technical specifications

• Model: W22IAD3S-67B2-P(HB)
• Processor: Intel® Core™ i5-1235U (3.3 GHz base, up to 4.40 GHz)
• Memory: 1 x SO-DIMM DDR5 4800 MHz, 8 GB standard; options 16 GB, 32 GB
• Storage: 1 x M.2 2280 M-Key NVMe SSD 256 GB standard; options 512 GB / 1 TB / 2 TB
• Ethernet: 1 x Intel® Ethernet Controller (Gigabit)
• Security: TPM 2.0
• Operating systems (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported under Linux)
• WLAN / Bluetooth: optional
• Display: 21.5-inch, 1920 x 1080, 1000 nits, 1000:1 contrast, viewing angles 89/89/89/89, active area 476.64 x 268.11 mm
• Touch / Glass: P-Cap multi-touch with optical bonding; True Flat protection glass optional
• Mechanical: 529.6 x 342.8 x 58 mm; weight 8.67 kg; VESA mount
• Enclosure: Aluminum die-cast; pre-finish Surtec 650, Type II, Class 3; polyester powder coating
• Cooling: Fanless (passive cooling)
• Environment: Operating humidity 10%–90% RH non-condensing; operating temp -10°C to 55°C (-40°C to 55°C with intelligent heater); storage -30°C to 70°C
• Shock & Vibration: MIL-STD-810G (shock Method 516.6 Proc I; vibration Method 514.6 Proc I)
• IP rating: IP67
• I/O: 1 x M12 waterproof connector for 2 x USB 2.0; 1 x M12 waterproof for RS232; 1 x waterproof Gigabit LAN RJ45; 1 x M12 waterproof for 9~36V DC power
• Indicators & controls: Power LED, Storage LED; Power key, +/- brightness keys, Menu key (auto/manual brightness), Day/Night mode, LED brightness adjust; built-in ambient light sensor
• Accessories: External open wire power cable (waterproof), external USB/COM/LAN cables (waterproof), waterproof caps, RJ45 female-female converter, USB Type-A converter, VESA screws
• Optional accessory: 100~240V AC to DC 120W adapter with power cord
• Ordering option: W22IAD3S-67B2-G(HB) for Anti-Reflective Protection Glass (optional)
