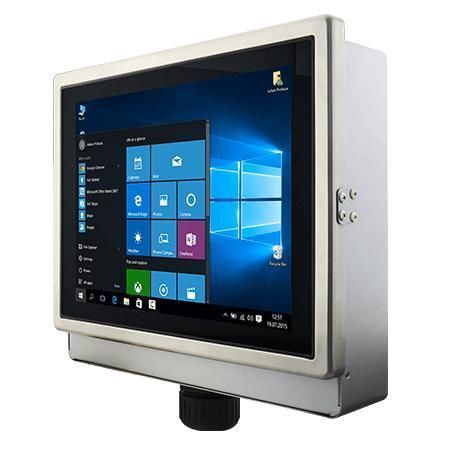

15" panel PC R15IB3S-65EX

multi-touch screentouch screenPCAP capacitive touch screen

Product Overview
The R15IB3S-65EX is a 15-inch ATEX Zone 2 certified stainless steel panel PC for hazardous-area applications, providing remote data collection, process visualization and control with Intel Celeron processing, fanless thermal design and a projected capacitive (PCAP) multi-touch display suitable for industrial environments.

Key Features

• 15" 1024 x 768 PCAP touchscreen, ATEX Zone 2 panel PC
• Class I Division 2, ATEX II 3G Ex ic nA IIC T4 Gc, IECEx Ex nA IIC T4 Gc certified
• Intel® Celeron® N2930 processor; fanless design for low maintenance
• Stainless steel enclosure with IP65 front protection
• Wide operating temperature range and optional MIL‑STD‑810G compliance

Certifications (high level)

• CE, FCC
• UL 60950-1 / CAN/CSA C22.2 No. 60950-1-07; EN 62368-1
• ATEX II 3G Ex ic nA IIC T4 Gc; IECEx Ex nA IIC T4 Gc; Class I, Div.2 Groups A,B,C,D T4
• IP65 front; MIL-STD-810G (optional)

Product highlights
The R15IB3S-65EX is certified for hazardous locations and designed for real-time production monitoring, HMI and process control in industries such as oil & gas, chemical and energy. Its fanless architecture and stainless enclosure enable stable continuous operation under wide temperature ranges while the PCAP touchscreen supports multi-touch finger input for intuitive operator control.

Technical specifications

• System: Intel Celeron N2930 1.83 GHz (up to 2.16 GHz); 1 x SO-DIMM DDR3L 4 GB standard (8 GB optional); 1 x mSATA SSD 128 GB (256/512 optional); Intel Ethernet controller; Windows 10 IoT Enterprise / Ubuntu 20.04 optional
• Display: 15.0" 1024 x 768 PCAP; 550 nits (1000 nits optional); active area 304.1 x 228.1 mm
• Mechanical: 396 x 310 x 49 mm (without box cover); stainless housing; VESA mount; fanless
• Environment: Operating humidity 10%–95% RH non‑condensing; operating temp -20°C to 60°C (certified -20°C to 50°C); storage -30°C to 70°C; IP65 front
• IO & Power: 1 x M12 USB (2 x USB2.0); 1 x M12 serial (RS232/422/485 default RS232); 1 x M12 Gigabit LAN; 2 x mPCIe (expansion); power input 9–36V DC via M12
• Accessories: AC/DC adapter with M12, power cord, M12 cables, RJ45 female‑female converter, USB adapter, VESA screws
