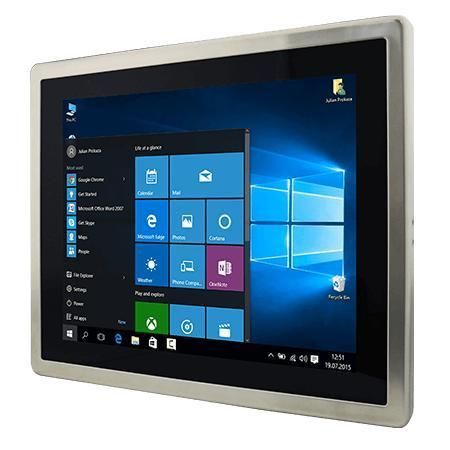

15" panel PC R15ID3S-65EX

with touch screenresistive touch screen5-wire resistive touch screen

Overview
R15ID3S-65EX is a 15" ATEX-grade panel PC engineered for hazardous-area industrial applications. It integrates an Intel® Atom® N2600 dual-core processor, fanless thermal design and stainless-steel housing to support remote data acquisition, process visualization and real-time production monitoring in ATEX Zone 2 / Class I Division 2 environments.

Key features

• 15" LCD, 1024×768 resolution
• Intel® Atom® N2600 processor (1.6 GHz)
• Certified for Class I Division 2 and ATEX Zone 2 hazardous-area use
• Fanless enclosure and stainless housing for corrosion resistance
• Explosion-proof 5-wire resistive touch (bonded, ELO)
• IP65 protection at the front and M12 waterproof I/O

Certifications & Compliance

• CE, FCC
• UL 60950-1; CAN/CSA C22.2 No. 60950-1-07; EN 62368-1
• Class I, Div.2, Groups A,B,C,D T4
• ANSI/ISA-12.12.01-2012; CSA C22.2 No. 213-M1987
• ATEX II 3G Ex ic nA IIC T4 Gc (EN 60079 series)
• IECEx Ex nA IIC T4 Gc (IEC 60079 series)
• MIL-STD-810G (optional)
• IP65 front protection

Product details / Highlights

• Explosion-proof bonded resistive touch for reliable operation with gloves in hazardous zones
• Suitable for drilling rigs, fuel-station forecourts, chemical plants and other hazardous-area industrial sites
• M12 waterproof connectors for USB, LAN and serial ports to maintain enclosure integrity
• Fanless design reduces ingress points and improves long-term reliability

I/O & Expansion

• USB: 1 x M12 connector (provides 2 × USB 2.0)
• Serial: 1 x M12 connector (RS232/422/485; default RS232)
• LAN: 1 x M12 Gigabit LAN connector
• Expansion: 2 × mPCIe slots (one for SATA III mSATA/mSATA SSD, one for Wi‑Fi module)
• Indicators: LED for power and LED for storage activity
• Power input: 9–36 V DC via M12 connector
• Controls: Power and Reset buttons

Environmental & Mechanical

• Operating temperature: −20°C to 60°C
• Storage temperature: −30°C to 70°C
• Operating humidity: 10% to 95% RH, non‑condensing
• Shock & vibration: MIL‑STD‑810G options available
• IP rating: IP65 (front)
• Dimensions: 396 × 310 × 49 mm; cut-out: 365 × 270 mm
• Weight: 5.7 kg
• Mounting: VESA mount
• Enclosure: stainless-steel housing

Accessories (standard / optional)

• 100–240 V AC to DC adapter with M12 connector
• Power cord; M12 power cable
• M12 RS232 male cable; M12 USB female cable; M12 LAN cable
• RJ45 female‑female converter; USB adapter (Type A to Type B); VESA mounting screws

Technical specifications

• Model: R15ID3S-65EX
• Processor: Intel Atom N2600 1.6 GHz (dual-core)
• Chipset: Intel® NM10
• Memory: 1 × SO‑DIMM DDR3L 1600 MHz, 4 GB (standard)
• Storage: 1 × mSATA SSD 128 GB (up to 512 GB optional)
• Display: 15.0"; 1024 × 768; panel brightness 550 nits (1000 nits optional); contrast ratio 2000:1; viewing angles 88/88/88/88
• Touch: 5‑wire resistive touch bonded to panel (explosion-proof)
• Ethernet controller: BCM57780A1KMLG
• OS: Windows 7 Embedded (optional); Linux Ubuntu 16.04 (optional)
• USB: 1 × M12 (2 × USB 2.0)
• Serial: 1 × M12 (RS232/422/485)
• LAN: 1 × M12 Gigabit
• Expansion: 2 × mPCIe (SATA III SSD slot, Wi‑Fi slot)
• LEDs: power and storage
• Power input: 9–36 V DC (M12)
• Dimensions / Cut-out / Weight: 396 × 310 × 49 mm / 365 × 270 mm / 5.7 kg
• Certifications summary: CE, FCC, UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, EN 62368-1; Class I Div.2; ATEX II 3G Ex ic nA IIC T4 Gc; IECEx Ex nA IIC T4 Gc
