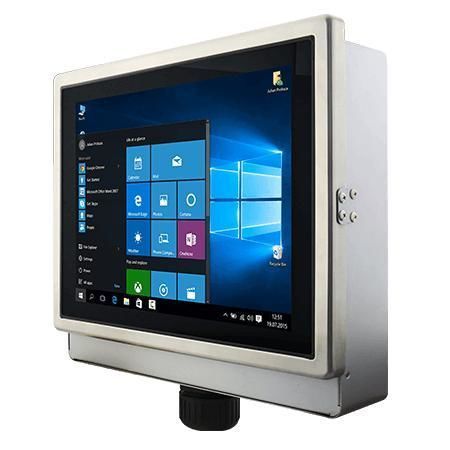

Panel PC with touch screen R15IE3S-65EX

PCAP touchscreenmultitouch screen15"

Overview
Winmate R15IE3S-65EX ATEX Panel PC provides a reliable computing solution for hazardous-area industrial applications. Built around an Intel® Atom® x6413E processor, it features a fanless thermal design, IP65 front protection and ATEX / IECEx / CID2 compliant design for operation in classified zones.

Key Features

• Intel® Atom® x6413E processor, up to 3.0 GHz
• 15.0-inch display, 1024 x 768 resolution, up to 1000 nits optional
• Projected-capacitive (P-cap) multi-touch with optical bonding
• ATEX / IECEx / CID2 compliant design for hazardous locations
• Fanless design and stainless housing for efficient heat dissipation
• Front IP65 protection and M12 industrial connectors
• Wide DC input 9–36V isolated (M12 power connector)
• Operating temperature -20°C to 60°C

Certifications

• CE
• FCC
• IC
• IP65 (front)
• Compliance with ATEX / IECEx / CID2 design

Product Overview Details

• Designed for operation in hazardous environments to meet regulatory and safety requirements.
• Fanless thermal solution with efficient enclosure for continuous operation and low maintenance.
• Stainless housing and EX-type brass cable glands with M12 ports for secure sealing in wet and dusty conditions.
• PCAP multi-touch supports glove use and multi-touch control for industrial HMI and monitoring applications.

System Specification

• Processor: Intel® Atom® x6413E (up to 3.0 GHz)
• Memory: 1 x SO-DIMM DDR4 3200 MHz — 4GB standard; 8GB / 16GB optional
• Storage: 1 x M.2 2242 B-key SSD 128GB standard; 256GB / 512GB optional
• Ethernet: 1 x Intel® Ethernet controller
• OS (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Windows 10 IoT Enterprise 64-bit, Linux Ubuntu 22.04

Display

• Touch / Glass: Projected capacitive multi-touch bonded to panel
• Size: 15.0 inches
• Resolution: 1024 x 768
• Brightness: 550 nits standard; 1000 nits optional
• Contrast Ratio: 2000:1
• Active Area: 304.1 x 228.1 mm

Mechanical

• Dimensions: 396 x 310 x 49 mm (without box cover); 396 x 346.4 x 101.7 mm (with box cover)
• Weight: 5.7 kg (without box cover); 10.2 kg (with box cover)
• Mounting: VESA mount
• Enclosure: Stainless housing
• Cooling: Fanless design

Environment

• Operating Humidity: 10% to 95% RH, non-condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C
• Shock / Vibration / Drop: MIL-STD-810G options available
• IP Rating: IP65 (front)

IO Ports

• USB: 1 x M12 connector for 2 x USB2.0
• Serial: 1 x M12 connector for RS232/422/485 (default RS232)
• LAN: 1 x M12 connector for Gigabit LAN
• Expansion: 1 x M.2 2242 B-key (SATA III SSD); 1 x M.2 2230 E-key (Wi‑Fi)
• Indicators: Power and storage LEDs
• Power Input: 1 x 9–36V DC, M12 connector

Control

• Buttons: Power and Reset

Accessories

• 100–240V AC to DC adapter with M12 connector
• Power cord, M12 power cable, M12 RS232 cable, M12 USB cable, M12 LAN cable
• RJ45 female–female converter, USB adapter (A to B), VESA screws

Technical specifications

• Model: R15IE3S-65EX
• Processor: Intel® Atom® x6413E, up to 3.0 GHz
• Display: 15.0" 1024x768, P-cap multi-touch, optical bonding
• Memory / Storage: DDR4 SO-DIMM (4GB standard; 8GB/16GB optional); M.2 2242 B-key SSD (128GB standard; up to 512GB)
• Connectivity: Intel Ethernet, M.2 E-key for Wi‑Fi, M12 connectors for USB/LAN/Power
• Power: 9–36V DC isolated input via M12
• Operating Temp / Humidity: -20°C to 60°C / 10%–95% RH non-condensing
• Protection & Certification: IP65 front, CE, FCC, IC, ATEX / IECEx / CID2 design
• Mechanical: Stainless housing, VESA mount, fanless
