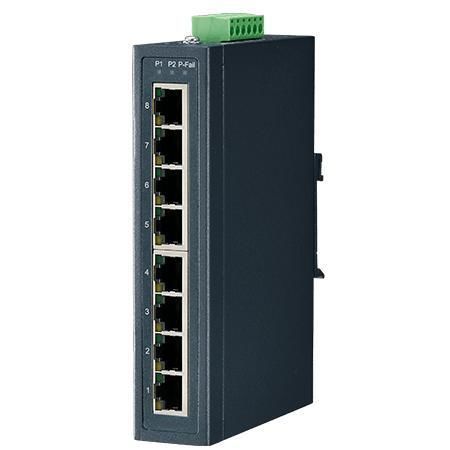

Managed switch EACSW

unmanaged8 portsfast ethernet

Overview
The EACSW is a plug-and-play marine Ethernet switch from Winmate, engineered for rapid deployment in marine and industrial environments. It provides immediate network connectivity without manual configuration and fits space-limited control cabinets with DIN-rail or wall mounting options.

Key features

• 8 x 10/100 Mbps RJ-45 ports with Auto MDI/MDI-X
• 10/100 Mbps Auto-Negotiation
• Plug-and-play operation for instant connectivity
• Gigabit X-Ring Pro redundancy with recovery time < 20 ms; supports RSTP/STP
• Compact metal housing (IP30) with DIN-rail and wall mounting
• Fanless design and low power consumption (4.71 W)
• 12 ~ 48 VDC redundant dual power input

Reliability and redundancy
X-Ring Pro redundancy and support for RSTP/STP provide fast recovery and loop prevention for mission-critical marine networks.

Connectivity
Eight 10/100 RJ-45 ports enable seamless multi-device connection with Auto MDI/MDI-X and auto-negotiation; typical transmission distance up to 100 m per port.

Mechanical design & installation
Slim footprint for control cabinets and restricted spaces; metal IP30 enclosure for industrial durability; supports DIN-rail or wall mounting.

Power and consumption
Redundant dual power input 12 ~ 48 VDC; typical power consumption 4.71 W; fanless operation reduces maintenance.

Certifications

• CE
• FCC

Technical specifications

• Model name: EACSW
• Brand: Winmate
• General: Plug and Play Marine Switch
• LAN: 8 x 10/100 Mbps RJ-45 ports (Transmission distance: 100 m)
• Network features: Auto MDI/MDI-X, 10/100 Mbps Auto-Negotiation, X-Ring Pro, RSTP/STP
• Operating humidity: 5% to 95%
• Operating temperature: -15 ~ 55°C
• IP rating: IP30
• Certifications: CE, FCC
• Dimension: 30 x 140 x 95 mm
• Weight: 1.5 kg
• Mounting: DIN-rail mount / Wall mount
• Enclosure: Metal shell (IP30)
• Cooling system: Fanless design
• Power rating: 12 ~ 48 VDC, redundant dual power input
• Power consumption: 4.71 W
