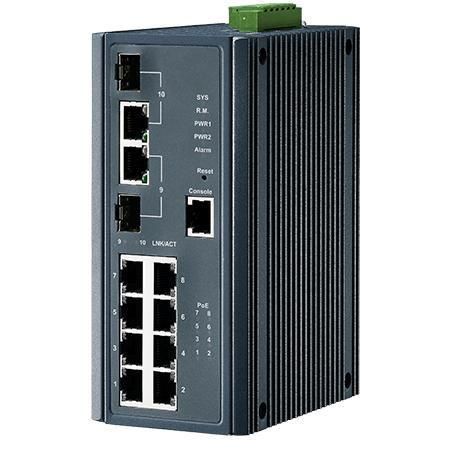

Managed switch EACSW-L2

10 portslayer 2gigabit Ethernet

Overview
The EACSW-L2 is a marine-grade plug-and-play SFP fiber switch designed for rapid deployment and centralized management in maritime and industrial networks. It combines PoE access, SFP fiber expansion and fast redundancy recovery for reliable onboard and coastal network applications.

Key features

• 8 x IEEE 802.3af/at PoE 10/100 Fast Ethernet ports
• 2 x Gigabit RJ-45 / SFP (mini-GBIC) combo ports for copper or fiber
• SFP sockets for flexible fiber expansion
• Redundancy: Gigabit X-Ring Pro with recovery time < 20 ms; RSTP/STP (802.1w/802.1D)
• IXM function for fast batch deployment and configuration
• Security: 802.1x (port-based) with MD5/TLS/TTLS/PEAP; RADIUS support
• Management: SNMP v1/v2c/v3, Web (HTTP/HTTPS), Telnet; Standard and Private MIB

Deployment & network management
The EACSW-L2 supports IXM for batch configuration across multiple devices, enabling rapid roll-out in large maritime installations. Integration with NMS software provides centralized monitoring and remote management of distributed switches.

Flexible fiber integration
SFP combo ports allow operators to choose copper or fiber links, extending reach and reducing interference for long-distance shipboard or coastal links.

High availability & rapid recovery
Gigabit X-Ring Pro redundancy and RSTP/STP support provide fast failover and loop prevention, ensuring continuity in mission-critical maritime systems (recovery < 20 ms).

Advanced security
Port-based 802.1x authentication with encrypted options and RADIUS support secures access to onboard networks and connected devices.

Management interfaces
Multiple management options (SNMP v1/v2c/v3, Web, Telnet) and both standard and private MIBs enable integration with enterprise NMS for monitoring, configuration and logging.

Certifications
CE, FCC

Technical specifications

• Model: EACSW-L2
• LAN ports: 8 x 10/100BASE-T/TX RJ-45 (PoE af/at) + 2 x RJ-45/SFP (mini-GBIC) combo ports
• PoE: IEEE 802.3af/at on PoE ports
• Fiber: SFP socket support (mini-GBIC)
• Redundancy: Gigabit X-Ring Pro (< 20 ms), RSTP/STP (802.1w/802.1D)
• Deployment: IXM for batch configuration; NMS integration
• Security: 802.1x (port-based) with MD5/TLS/TTLS/PEAP; RADIUS
• Management: SNMP v1/v2c/v3, Web (HTTP/HTTPS), Telnet; Standard & Private MIB
• Operating temperature: -15 ~ 55°C
• Operating humidity: 5% to 95%
• IP rating: IP30
• Certifications: CE, FCC
• Dimensions: 74 x 152 x 105 mm
• Weight: 3.5 kg
• Mounting: DIN-rail mount / Wall mount
• Enclosure: Metal shell
• Cooling: Fanless design
• Power rating: 24 ~ 48 VDC, redundant dual power input
• Power consumption: 12.1 W @ 48 VDC (System)
