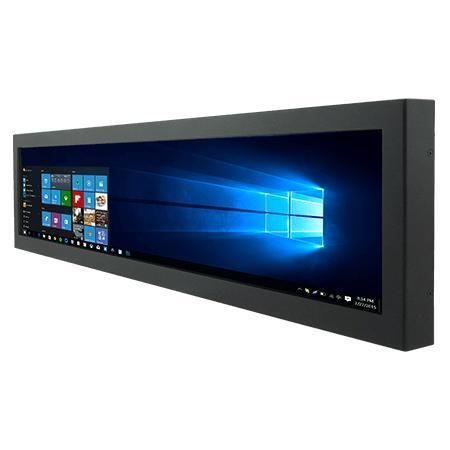

LCD panel PC W28IB3S-CHA2

widescreen28"Intel® Celeron N2930

Overview
The 28.6-inch Bar-type Panel PC Winmate W28IB3S-CHA2 is a low-power, fanless bar-panel solution for digital signage, public transportation, exhibition halls, department stores and vending machines. It provides an ultra-wide stretched display for content and route-map presentation, a metal enclosure for durability and multiple I/O options for flexible integration.

Key Features

• 28.6-inch ultra-wide display (stretched aspect ratio), resolution 1920 x 540, panel brightness specified at 700 nits
• Low-power Intel® Celeron® N2930 processor for multimedia playback and content rendering
• Fanless cooling and wide operating temperature range (0°C to 50°C) for reliable public-area operation
• Front IP54 protection available with optional protective glass
• Flexible connectivity: 2x LAN, USB2.0, USB3.0, serial (RS232/422/485), optional HDMI, optional WLAN and Bluetooth

Certifications

• CE
• FCC

Technical specifications

• Model: W28IB3S-CHA2
• Brand: Winmate
• Touch / Glass: Protection Glass
• Display size: 28.6 inches
• Resolution: 1920 x 540
• Panel Brightness: 700.0 nits (marketing note: 1000 nits mentioned elsewhere)
• Contrast Ratio: 4000:1
• View Angles: 89° / 89° / 89° / 89°
• Active Area: 698.4 x 196.425 mm
• Processor: Intel Celeron N2930 1.83GHz (up to 2.16GHz)
• Memory: 4GB (Default); 8GB (Optional)
• Storage: 128GB SSD (Default); 256GB / 512GB SSD (Optional)
• Ethernet Controller: 2 x Intel® Ethernet Controller (2 x RJ45)
• Operating System: Windows 10 IoT Enterprise (64-bit) (Optional); Linux Ubuntu 20.04 (Optional)
• WLAN / Bluetooth: Support (Optional)
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Dimensions (W x H x D): 736.5 x 234.4 x 70 mm
• Weight: 6.73 kg
• Mounting: VESA mount
• Enclosure: Metal
• Cooling System: Fanless Design
• USB Ports: 1 x USB2.0, 1 x USB3.0
• Serial Port: 1 x RS232 (Default) / 422 / 485
• LAN: 2 x RJ45
• Video: 1 x HDMI (Optional)
• Power Rating: 9V ~ 36V DC In (Terminal Block)
• Buttons: 1 x Power Button, 1 x Reset Button
• Accessories: User Manual; 3-pin Terminal Block; VESA Mount Screws
• Certifications: CE, FCC
