LCD panel PC W38IB3S-CHA1

widescreen1000 nits37"

Overview

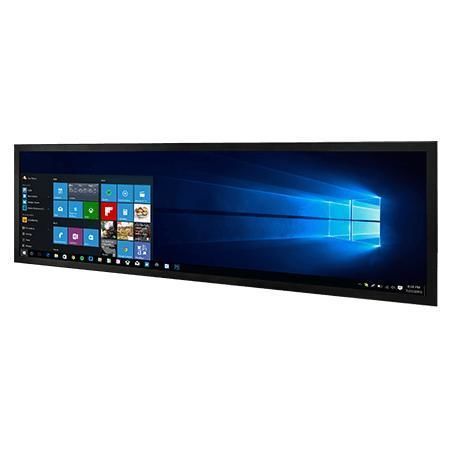

The 37-inch 1920 x 540 Bar-Type Panel PC W38IB3S-CHA1 is an industrial-grade display computer designed for digital signage, kiosks, public transport, exhibition halls and vending machines. It integrates an Intel® Celeron® N2930 processor, fanless cooling and ultra-low power operation. The unit ships by default with Windows Embedded Standard 7 and supports optional modern OS and connectivity configurations.

Key Features

• 37-inch ultra-wide display with 1920 x 540 resolution
• Intel® Celeron® N2930 low-power processor
• Fanless cooling design for reliable continuous operation
• 1000 nits panel brightness for high-visibility indoor and semi-outdoor use
• Default OS: Windows Embedded Standard 7 (alternative OS options available)

Presentation / Highlights

• Ultra-wide LCD — stretched format supports CMS-driven layouts and multiple input sources for panoramic content.
• Wide operating temperature & fanless design — operates from 0°C to 50°C; thermal design optimized for public and harsh environments.
• High brightness — 1000 nits for good visibility under strong ambient light.
• Efficient CPU — Intel® Celeron® N2930 supports 2D/3D graphics and HD video playback for multimedia signage.

Certifications

• CE
• FCC

Technical specifications

• Model: W38IB3S-CHA1
• Commercial designation: 37-inch Intel® Celeron® N2930 Bar-Type Panel PC
• Display size: 37.0 inches
• Resolution: 1920 x 540
• Protection glass: Protection Glass
• Panel brightness: 1000 nits
• Contrast ratio: 4000:1
• Viewing angles: 89 / 89 / 89 / 89
• Active area: 904.32 x 254.34 mm
• Processor: Intel Celeron N2930 1.83 GHz (up to 2.16 GHz)
• Memory: 4 GB (default); optional 8 GB
• Storage: 128 GB SSD (default); optional 256 GB, 512 GB SSD
• Ethernet controller: 2 x Intel® Ethernet Controller (2 x RJ45)
• Operating System (optional): Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 20.04
• WLAN / Bluetooth: optional support
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• Dimensions: 928.3 x 282.1 x 69 mm
• Mounting: VESA mount
• Enclosure: Metal
• Cooling system: Fanless design
• USB ports: 1 x USB 2.0, 1 x USB 3.0
• Serial port: 1 x RS232 (default) / 422 / 485
• LAN: 2 x RJ45
• Video: 1 x HDMI (optional)
• Accessories included/available: User manual, 3-pin terminal block, VESA mount screws
• Power input: 9V ~ 36V DC via terminal block
• Control buttons: 1 x Power, 1 x Reset
