Step-down converter ML-1280

printed circuitembeddedvehicle

Overview
Winmate ML-1280 is a DC/DC power converter module engineered for military and defense power systems, compliant with MIL-STD-1275E. It integrates a surge-stopper circuit, a 6600W transient voltage suppressor and eFuse protection to mitigate voltage spikes, reverse polarity and thermal/overload events. The unit accepts 9–36V DC input and supports typical outputs such as 12V @ 6.67A (80W).

Key features

• MIL-STD-1275E compliant
• High-efficiency DC-DC power conversion (up to 90% at full load)
• Wide input range: 9–36V DC
• Low inrush current design
• Output over-current protection (OCP) and output regulation
• Input reverse polarity protection
• Surge-stopper circuit and 6600W transient voltage suppressor (TVS)
• Comprehensive eFuse protection (under-voltage, over-voltage, overload, over-temperature)

Certifications

• MIL-STD-1275E
• FCC
• CE

Specifications
Input voltage: 9V to 36V DC
Example output / load: 12V @ 6.67A (80W)
Power rating: 80W
Efficiency: Up to 90% (full load)
Ripple & noise: <120 mV
Line regulation: < ±1% (9–36V input)
Load regulation: < ±5%
Protection features: OCP, OVP, input reverse polarity protection, surge-stopper design, 6600W TVS, eFuse (UVP/OVP/OLP/OTP)

Environment

• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 70°C
• Altitude: 0 to 10000 ft

Mechanical

• Dimensions: 110 x 50 x 18.1 mm

Applications & product notes

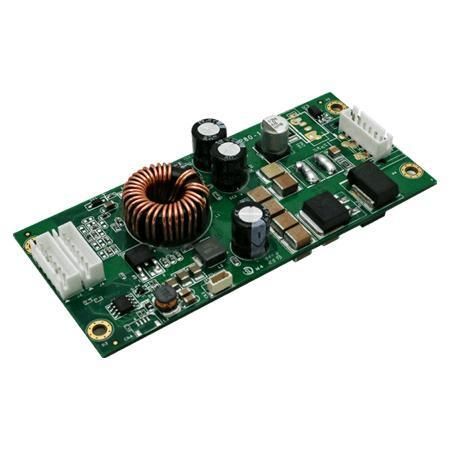

The ML-1280 is intended for defense platforms, military vehicles and rugged embedded systems requiring MIL-STD-1275E compliance and layered transient protection. Product imagery typically illustrates PCB layout, the high-power TVS, eFuse components and reverse polarity safeguards.
