Chassis-mounted DC/DC converters

Power: 384 W - 400 W
Input voltage: 110 V
Output voltage: 24 V

Wide Input Range Galvanically Seperated Transient Protected Short Circuit Protected

Power: 240 W - 264 W
Input voltage: 48, 24, 110, 80 V
Output voltage: 12, 30, 24 V

... modulation, depending on the current mode principle as supported by a transformer and a secondary linear choke. This contains converters that contain short-circuits. They are ready to be utilized in units that are ...

Power: 400 W
Input voltage: 60, 24 V
Output voltage: 24, 12.5 V

Wide Input Range Galvanically Seperated Transient Protected Short Circuit Protected

Power: 20 W
Input voltage: 9 V - 75 V
Output voltage: 5.1, 12, 24, 48 V

... performance DC/DC converter modules. With a very high efficiency of up to 91% and the use of highest grade components these 20 W converters are made for a reliable operation in the temperature range of ...

Power: 20 W
Input voltage: 9 V - 160 V
Output voltage: 5, 12, 15, 24 V

The TEQ-20WIR Series is a family of isolated high performance dc-dc converter modules with ultra-wide 4:1 input voltage ranges which come in a rugged metal case. These converters ...

Power: 40 W
Input voltage: 9 V - 75 V
Output voltage: 5.1, 12, 24, 48 V

... Series is a range of encapsulated high performance DC/DC converter modules. With a very high efficiency of up to 92% and the use of highest reliable components these 40 W converters are avialable as a ...

Power: 200 W
Input voltage: 125, 24, 48 V
Output voltage: 48, 12, 24, 125 V

This rugged, industrial quality DC/DC converter uses field-proven topology to generate up to 200W output power. It is a mature design with a track record in numerous applications. Cooling is via baseplate to a heat-sinking ...

Power: 200 W
Input voltage: 48, 125, 24 V
Output voltage: 12, 24, 48, 125 V

This rugged, industrial quality DC/DC converter uses field-proven topology to generate 200W output power. It is a mature design with a track record in numerous applications. Cooling is via base plate to a heat-sinking ...

Power: 30 W
Input voltage: 20 V - 160 V
Output voltage: 125, 48, 24, 12 V

This rugged, industrial quality DC-DC converter uses a field proven technology to generate the required output power. It is a mature design with a track record in numerous applications. ...

Power: 1 W
Input voltage: 3.3, 5, 9, 12, 15 V
Output voltage: 3.3, 5, 9, 12, 15 V

Typical Features ◆Fixed input voltage, isolated& unregulated output, output power 1W ◆High efficiency up to 78% ◆Small compact SIP packing ◆No external component required ◆Isolation Voltage1500VDC ◆Operating Temperature:-40℃～+85℃ ...

Power: 20, 30 W
Input voltage: 18, 24, 36, 48 V
Output voltage: 3.3, 5, 12, 15, 24 V

... EMI performance ◆ International standard pin-out FD30-XXSXXB3(C) is a new designed DIP 2X1 packed, 30W output power DC DC Converter with ultra wide input voltage, low stand by power consumption,super-fast start up, ...

Power: 12 W
Input voltage: 18, 24, 36, 48 V
Output voltage: 3.3, 5, 9, 12, 15 V

... DIP 1X1 packed，12W output power, ultra wide input range 4:1，low stand-by power consumption，isolated regulated output DC-DC converter，could be widely used for industrial control, instrument, ...

Power: 50 W - 60 W
Input voltage: 9.5 V - 144 V
Output voltage: 5 V - 48 V

... voltage Remote sensing Output voltage presence LED Efficiency up to 85% PRODUCT WARRANTY: 3 YEARS ACCESSORIES DIN rail mounting kit Redundant connection TERMINAL OPTIONS Spring clamp terminal

Power: 50 W - 60 W
Input voltage: 24 V - 110 V
Output voltage: 5 V - 48 V

... voltage Remote sensing Output voltage presence LED Efficiency up to 85% PRODUCT WARRANTY: 5 YEARS ACCESSORIES DIN rail mounting kit Redundant connection TERMINAL OPTIONS Spring clamp terminal

Power: 40 W
Input voltage: 40 V - 160 V
Output voltage: 3.3 V - 48 V

URF1D_LD-40WR3 series are isolated 40W DC-DC products with 4:1 input voltage .Their feature efficiency up to 91%, 1500VAC / 3000VDC isolation with enhanced isolation, operating temperature of -40℃ to ...

Power: 40 W
Input voltage: 40 V - 170 V
Output voltage: 3.3 V - 48 V

URF1D_LD-40WR3 series are isolated 40W DC-DC products with 4:1 input voltage .Their feature efficiency up to 91%, 1500VAC / 3000VDC isolation with enhanced isolation, operating temperature of -40℃ to ...

Power: 20 W
Input voltage: 110 V
Output voltage: 3.3 V

... A, without external components Six-sided metal shielding package Reverse voltage protection available with A2S(Chassis mounting) or A4S(35mm DIN-Rail mounting) IEC60950,UL60950,EN60950 approval Applications: ...

Power: 20 W
Input voltage: 24 V
Output voltage: 13.5 V

Rugged arid rertaWe DC-DC converter systems from 24V to 12V DC nominal, high efficiency Applications: trucks, lorries, buses, boats, etc. Feature»: Very tow power dissrpaton ...

Input voltage: 24 V
Output voltage: 13.5 V

Rugged and reAaWe DC-DC converter sysfems from 24V to 12V DC no- minal, high efficiency Applications: trucks, lorries, buses, boats, etc. Features: Very tow power dissipation ...

Power: 27 W - 40 W
Input voltage: 20 V - 32 V
Output voltage: 13.5 V

Protected against reversed polarity (input) Protected against overvoltage (output) 6,3 mm push-on terminals (input and output) Common negative connection for input and output E-marked vehicle directive ref. (95/54/EC)

Power: 80 W - 100 W
Input voltage: 20 V - 32 V
Output voltage: 13.5 V

Protected against reversed polarity 6,3 A fuse (input) Protected against overvoltage at approx. 16 V (output) Backup: Protected against overvoltage at output and short circuit proof 6,3 mm push-on terminals (input and output) Common ...

Power: 80 W - 100 W
Input voltage: 20 V - 32 V
Output voltage: 13.5 V

Protected against reversed polarity 8 A fuse (input) Protected against overvoltage at approx. 16 V (output) 6,3 mm push-on terminals (input and output) Common negative connection for input and output Specially designed for car stereo ...

Power: 30 W
Input voltage: 20 V - 70 V
Output voltage: 5 V - 48 V

... powering sensors, transducers and other devices that require their own DC voltages, with no need to install separate AC lines and power supplies for each one. These DC to DC converters ...

Input voltage: 24 V
Output voltage: 12 V

Eaton Controls and Power Conversion's DC-DC Converters continue to provide regulated power directly to accessory or main loads. Eaton offers DC-DC Converters ...

Input voltage: 16 V - 34 V
Output voltage: 12, 14 V

The successful ROD series story goes on! As the ROD01.2 the ROD04 DC/DC-Converter is encased with a powder-coated housing, too. It protects from dust, water, vibration and shock according ...

Input voltage: 9 V - 96 V
Output voltage: 12 V - 14 V

... output current of up to 50 Amps. 12055C02 Converter Provides 24V power in a 12V system. The 12055C0 Converter has an output current of up to 55 amps and features a 12V or 24V selectable input. 21008C10 ...

Power: 120 W
Input voltage: 12, 24, 48 V
Output voltage: 1.5 V - 48 V

... Series - DC Input Switchers Features and Options CB Report 1.5-48 V Outputs Available Thermal Protection-Option UL- cUL; EN60950-1 Approval 2 : 1 & Wider Input Ranges -40ºC Start-Up-Option Power Good Signal-Option 1U ...

Power: 150 W
Input voltage: 24, 48, 110 V
Output voltage: 12, 15, 24, 28, 48 V

... offers both DC/DC and DC/AC conversion, offering a wide range of inputs and output combinations. The portfolio includes high density cassette type converters as well ...

Power: 170 W
Input voltage: 9 V - 18 V
Output voltage: 24 V

DC/DC Converters Type MDCI and MDC series The DC/DC converters type MDCI and MDC are used, depending on the model, either to step up or to step down a DC voltage. The the MDCI range ...

Power: 500 W
Output voltage: 24 V - 220 V

The PWD 506 has a continuous rated power of 500 W and is available for input voltages and output voltages of 24 - 220 V.

Power: 36 W
Input voltage: 12 V
Output voltage: 12 V

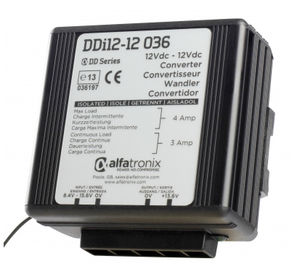

12V-12V, 24V-24V, 12V-24V and 48V-12V Converters for a wide range of applications If you need to fit 24V equipment onto a 12V vehicle, then an up converter from the DD Series offers a fast and easy ...

Power: 160 W
Output voltage: -12, -5, 12, 5 V

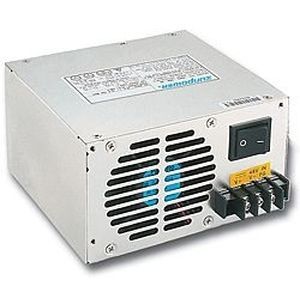

SDD-160-12 - 160W PS2 DC-DC AT Power Supply Features 2 : 1input range Input and output isolation Soft start function , low inrush current Input over voltage and under voltage protection Input polarity ...

Power: 30 W

30W Output Power 4:1 Input Voltage Range 1,500 VDC Isolation -40°C to +85°C Operation Remote ON/OFF Control Single & Dual Outputs 12 Standard Models 1.0 MHr MTBF Industry Standard Pin Out

Power: 60 W
Input voltage: 24 V
Output voltage: 1 kV - 60 kV

Spellman’s SMS Series is based on a resonant flyback circuit that provides over 80% efficiency and high pulse current capability. Featuring voltage and current regulation with automatic crossover, The SMS is arc and short circuit protected ...

Power: 15 W - 1,000 W
Input voltage: 16.8 V - 144 V
Output voltage: 5, 12, 24, 48 V

Features : - DC input active surge current limiting - Wide 4:1~2:1 DC input range (24V: 19~72VDC, 96V:72~144VDC) - Protections: Short circuit / Overload / Over voltage / Over temperature / Input ...

Power: 750 W
Input voltage: 24 V - 375 V
Output voltage: 2 V - 54 V

VIPAC Arrays are a highly flexible system of DC input, power building blocks that can be configured with as many as four user-definable outputs on a low-profile, coldplate chassis. Using Vicor's PowerBench ...

Power: 100 W
Input voltage: 9.2 V - 18 V
Output voltage: 12.5 V

... Watt segregated to DC-DC converters which is fitted for any application needing active isolation into the input and output. This product secluded to DC-DC ...

Power: 30,000, 600,000 W
Input voltage: 0 V - 800 V
Output voltage: 1,000, 920 V

... can be optimally integrated into any plant. Innovative DC-DC converter With SINAMICS DCP Siemens starts the new generation bidirectional DC/DC converter. ...
