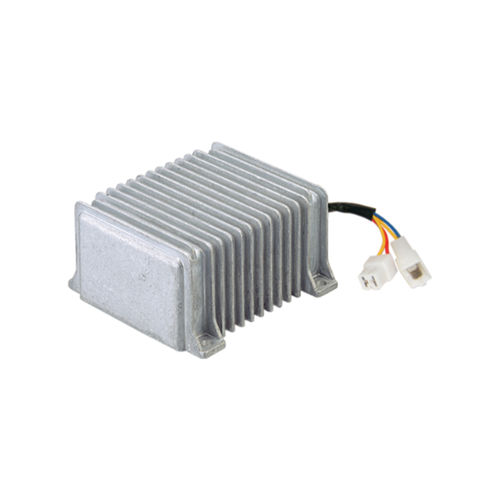

Chassis-mounted DC/DC converter 1031497

CANbuswith overvoltage protection

DC/DC voltage converter 1031497 with polarity reversal protection via internal fuse, overload protection via blinking, and automatic short-circuit protection in 5 seconds features an operating temperature range between -30 and 45°C. Input voltage: 48V, 80V; output voltage: 24V; nominal power: 200W; nominal current: 8.3A; maximum output current: 10A; protection rating: IP64. It is EJ 1378 and EN 12895SA approved. NOMINAL CURRENT - 8.3A RIPPLE DI TENSIONE - 100mV TENSIONE IN USCITA - 24V TENSIONE INGRESSO - 48V 80V TYPE - BUCK CORRENTE MASSIMA IN USCITA - 10A COMMUNICATION INTERFACE - NO NOMINAL POWER - 200W NR OF CONTACTS - 2 PINS FREQUENZA - 62kHz CANBUS - NO GALVANIC ISOLATION - NO CONNECTORS - AMP 0-0280542-0 IMP 120.020W CABLE LENGTH - 100mm PARALLELABLE - NO SHORT CIRCUIT PROTECTED OUTPUT - YES. AUTOMATIC IN 5'' OVERLOAD PROTECTION - YES BY BLINKING REVERSE POLARITY PROTECTED - YES. BY MEANS OF INTERNAL FUSE OPERATING TEMPERATURE - -30 ÷ 45°C HOUSING MATERIAL - ALUMINIUM HOMOLOGATIONS - EJ 1378 EN 12895SA
