10.4" vehicle-mount computer FM10E-VML

Intel® Atom® x6425EIntel® Elkhart lake SoCrugged

Product summary

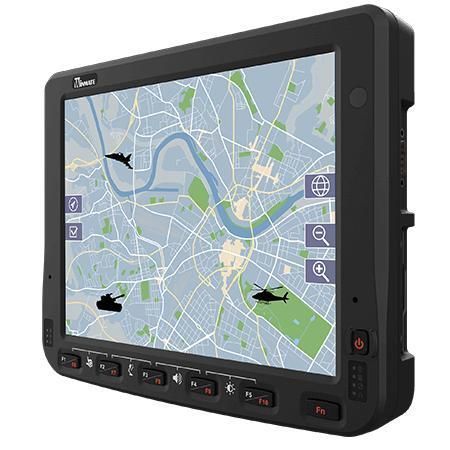

The FM10E-VML is a 10.4-inch vehicle-mounted defence panel PC powered by Intel Elkhart Lake Atom processors. It provides a PCAP touchscreen, defence-grade connectors, MIL-STD compliance and front IP65 protection for integration in vehicle and mission systems.

Key features

• Intel Elkhart Lake x6413E processor (default), optional x6425E
• 10.4-inch 1024 x 768 panel with projected capacitive multi-touch (PCAP)
• Front IP65 waterproof and dustproof rating
• Wide power input 10V–60V DC with ignition control
• Wide operating temperature range (-30°C to 60°C)
• VESA mounting support and fanless design
• IO with defence-grade MIL-DTL-38999 connectors
• Compliant with MIL-STD-810H and MIL-STD-461 series

Certifications

• IP65 (front)
• MIL-STD-810H
• MIL-STD-461G (variants)
• CE, FCC, IEC/EN/UL 62368-1

Overview and ruggedization
Designed for harsh environments, the FM10E-VML features a rugged enclosure tested to MIL-STD-810H for shock, vibration and drop. The IP65 front bezel and EN62262 IK07 impact rating protect the display and controls in dusty and wet conditions. EMI/EMC and TEMPEST options support defence deployments.

Designed for integration
The unit includes MIL-DTL-38999 connectors for LAN, USB Type-A, power and other I/O to ensure secure, sealed connections in vehicle installations. Programmable function buttons, LED indicators and VESA mount compatibility enable flexible mounting and system integration.

Use cases
Suitable for defence vehicle consoles, field command, mission systems, vehicle-mounted situational awareness and other mission-critical mobile applications requiring secured I/O and environmental resilience.

Technical specifications

• Model: FM10E-VML
• Display: 10.4 inches; Resolution 1024 x 768; Projected Capacitive Multi-Touch (PCAP)
• Panel brightness: 400 nits (default); 800 nits (optional)
• Contrast ratio: 1200:1; View angles: 88/88/88/88
• Processor: Intel Atom x6413E 1.5GHz (up to 3.0GHz) default; Intel Atom x6425E optional
• Memory: 1 x SO-DIMM DDR4 3200 MHz, 4GB default; options 8GB, 16GB
• Storage: 1 x M.2 2242 SSD 128GB default; options 256GB, 512GB
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise LTSC 64-bit default; Windows 11 IoT Enterprise LTSC optional
• Wireless: WLAN supported; Bluetooth supported; WWAN 4G/LTE optional; GNSS optional
• Sensors: G-Sensor, light sensor, temperature sensor
• Front camera: 2 MP
• Operating humidity: 5% to 90% RH non-condensing
• Operating temperature: -30°C to 60°C; Storage temperature: -30°C to 60°C
• Shock/Vibration/Drop: compliant with MIL-STD-810H methods and NATO STANAG equivalents
• IP rating: IP65 (front); Impact: EN62262 IK07
• EMC: MIL-STD-461G variants supported; TEMPEST options available
• Controls: 1 x power button; 6 x programmable function buttons
• IO ports: 1 x USB Type-C; 1 x USB 2.0 Type-A (MIL-DTL-38999/3); 2 x RS232/422/485; 1 x Gigabit LAN (MIL-DTL-38999/1); microSD; dual-nano SIM slot
• Indicators: 6 x LEDs for WLAN, BT, UPS, HDD, screen blanking, heater
• Mechanical: 268.1 x 214 x 51 mm; Weight 2.4 kg; VESA mount; fanless
• Power: 10V–60V DC with ignition control; optional 400 mAh UPS battery (~20 minutes)
• Accessories: Quick Start Guide, power and I/O cables (MIL-DTL-38999), 84W adapter; optional antennas and RS232 cable
