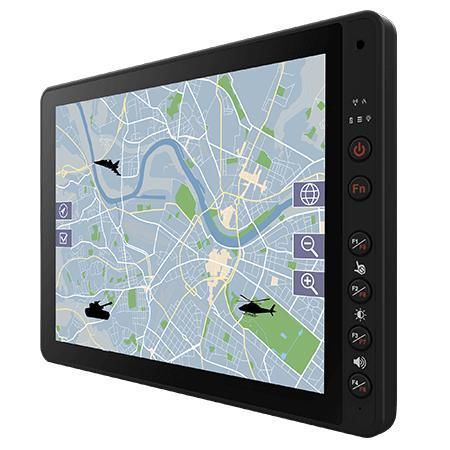

12.1" vehicle-mount computer FM12E-VML

Intel® Elkhart lake SoCMIL-STD-810Hrugged

Overview
The FM12E-VML is a 12.1" vehicle-mounted Defence Panel PC by Winmate engineered for in-vehicle command, field operations and mission-critical mobility. It integrates rugged mechanical design, MIL-STD certifications, IP65 front protection, Defence-grade MIL‑DTL‑38999 connectors, wide-range DC input with ignition control and Intel® Elkhart Lake processors for reliable OEM and system integrator deployments.

Key features

• Intel® Elkhart Lake x6413E (default) / x6425E (optional)
• 12.1" 1024 x 768 display with projected capacitive (PCAP) multi-touch
• Front IP65 waterproof and dustproof rating
• Wide power input: 10–60 V DC with ignition control
• Wide operating temperature: -30°C to 60°C
• VESA mount support and fanless design
• IO with Defence-grade MIL‑DTL‑38999 connectors
• Compliant with MIL‑STD‑810H and MIL‑STD‑461 series

Certifications

• CE, FCC, IEC/EN/UL 62368-1
• MIL‑STD‑810H (environmental shock & vibration)
• MIL‑STD‑461G (selected EMI/EMC tests)
• IP65 (front)

Product highlights
Rugged aluminium enclosure with elastomeric rubber protection ensures resistance to shock and vibration. PCAP touchscreen delivers high sensitivity and tolerance to dirt and debris. Defence-grade MIL‑DTL‑38999 LAN/USB/power connectors enable secure integration into military and vehicle systems. Fanless thermal design and wide DC input make the unit suitable for continuous vehicle operation; optional UPS battery provides short-term backup.

Additional details

• Display brightness: 400 nits (default); 800 nits (optional) for sunlight readability
• Memory/storage: SO‑DIMM DDR4 options (4/8/16 GB) and M.2 2242 SSD options (128/256/512 GB)
• Optional wireless: 4G/LTE, WWAN, GPS/GLONASS (GNSS)
• Built-in sensors: G-sensor, light sensor, temperature sensor; front 2MP camera
• Dimensions: 306.6 x 225 x 56.6 mm; Weight: 2.4 kg; VESA mount supported

Technical specifications

• Model: FM12E-VML
• Brand: Winmate
• Display - Size/Resolution/Type: 12.1" / 1024 x 768 / Projected Capacitive Multi‑Touch (PCAP)
• Panel Brightness: 400 nits (Default); 800 nits (Optional)
• Contrast Ratio: 1000:1; View Angles: 89/89/89/89
• Processor: Intel Atom x6413E 1.5 GHz (up to 3.0 GHz) default; x6425E optional
• Memory: 1 x SO‑DIMM DDR4 3200 MHz, 4GB default; 8GB/16GB optional
• Storage: 1 x M.2 2242 SSD 128GB default; 256/512GB optional
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise LTSC 64‑bit (Default); Windows 11 IoT Enterprise LTSC optional
• Wireless: WLAN/Bluetooth supported; WWAN 4G/LTE optional; GNSS optional
• Sensors & Camera: G-sensor, light sensor, temperature sensor; front 2MP camera
• Operating Humidity/Temperature: 5%–90% RH non‑condensing; -30°C to 60°C
• Shock/Vibration/Drop: MIL‑STD‑810H and NATO STANAG / AECTP procedures as specified
• IP / Impact / EMC: IP65 front; EN62262 IK07; MIL‑STD‑461G (CE101/CE102/RE101/RE102/CS118 default; additional items optional)
• TEMPEST: Default; optional NSA NSTISSAM TEMPEST/192 and NATO SDIP27
• Controls: 1 x Power Button; 5 x programmable Function Buttons
• I/O - USB: 1 x USB Type‑C; 1 x USB 2.0 Type‑A (MIL‑DTL‑38999/3)
• I/O - Serial: 2 x RS232/422/485 (Default RS232)
• I/O - LAN: 1 x Gigabit LAN (MIL‑DTL‑38999/1)
• SD/SIM: 1 x Micro SD slot; 1 x Dual‑Nano SIM slot
• Indicators: 4 x LEDs (WLAN, UPS battery, HDD, Heater)
• Dimensions & Weight: 306.6 x 225 x 56.6 mm; 2.4 kg
• Mounting & Cooling: VESA mount support; fanless design
• Power: 10–60 V DC with ignition control (MIL‑DTL‑38999/1); optional 400 mAh UPS battery (~20 min)
• Accessories included: Quick Start Guide; MIL‑DTL‑38999 power/USB/LAN cables; 84W power adapter; power converter cable
• Optional accessories: RS232 cable, GPS/LTE combo antennas, WWAN/GPS antennas
