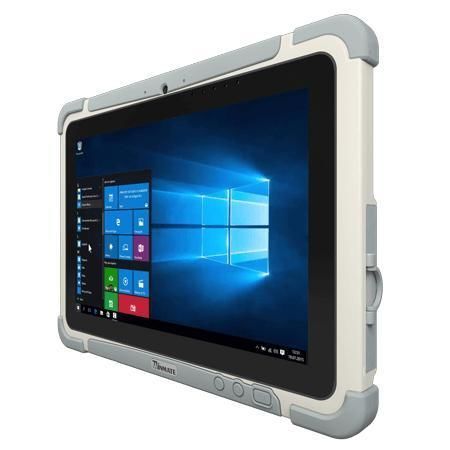

Windows 10 IoT Enterprise tablet M101EK-ME

Windows 11 IoT Enterprise10.1"Intel® Pentium® N6415

Overview
Winmate M101EK-ME is a 10.1-inch medical-grade rugged tablet designed for hospital workflows, clinical carts and medical equipment integration. Powered by Intel® Elkhart Lake processors (Celeron® N6211 default, Pentium® N6415 optional), it features an antimicrobial housing, hot-swappable battery and medical safety certifications for reliable use in clinical environments.

Key Features

• Intel® Celeron® N6211 (default); Intel® Pentium® N6415 optional
• 10.1-inch 1920 x 1200 IPS display with direct optical bonding
• 800 nits brightness, anti-glare touch treatment, projected capacitive multi-touch
• IP65-rated waterproof and dustproof enclosure; fanless design
• Hot-swappable battery for continuous operation
• Touch modes: stylus, glove and wet-touch
• Antimicrobial housing, compatible with clinical cleaning agents
• USB Type-C with Power Delivery; extensive expansion and accessory options

Certifications

• IEC/EN 60601-1, IEC/EN 60601-1-2, UL 60601-1
• CE, FCC
• IP65
• MIL-STD-810G / MIL-STD-810H shock, vibration and drop tests

Display
Size: 10.1 inches
Resolution: 1920 x 1200
Panel: IPS, 800 nits
Touch: Projected Capacitive Multi-Touch (stylus/glove/wet)
Bonding: Optical bonding for sunlight viewability
Anti-glare treatment for clinical lighting conditions

System Specification
Processor: Intel® Celeron® N6211 @1.20 GHz (up to 3.00 GHz) default; Intel® Pentium® N6415 optional
Memory: 4GB default, 8GB optional
Storage: 128GB SSD default; micro SDXC; optional 256GB / 512GB SSD
Security: TPM 2.0, Kensington Lock support
OS: Windows 11 IoT Enterprise LTSC (64-bit) default; Windows 10 IoT Enterprise LTSC optional
Connectivity: WLAN, Bluetooth; WWAN 4G/5G optional; GNSS supported
Optional I/O: HF/UHF RFID, 1D/2D barcode reader, smart card reader

Camera
Front: 2 MP
Rear: 8 MP with autofocus and LED light

Mechanical
Dimensions: 271.9 x 197.3 x 19.5 mm
Weight: ~1.2 kg (standard battery); ~1.4 kg (high-capacity battery)
Housing: Antimicrobial properties; fanless cooling

IO Ports
1 x USB 3.0 Type-A; 1 x USB 3.0 Type-C (supports PD 20V In); 1 x Micro HDMI (optional); 1 x Micro SD slot (SDXC); 1 x SIM slot; 3.5mm audio combo jack; dual digital mics with noise cancellation; dual speaker; 19-pin docking connector; expansion connector (optional)

Environment
Operating humidity: 10%–90% RH non-condensing
Operating temperature: 0 to 35°C
Storage temperature: -30°C to 70°C
Shock/Vibration/Drop: MIL-STD-810G/H tests (drop 4 ft specified)
IP Rating: IP65

Power
Battery: Hot-swappable 7.4V typ. 5140 mAh Li-Polymer (default); 7.4V typ. 10280 mAh optional
Battery life: Standard battery ~8 hours (dependent on configuration and use)
Power rating: 19V DC; Adapter: 100-240V 50-60Hz (19V DC)

Accessories
Standard accessories

• Adapter and power cord — Model: EM10681V
• Capacitive stylus — Model: DS-M101
• Standard battery — Model: BS101-ME

Optional accessories

• Vehicle cradle, vehicle dock, desk dock (USB/LAN/VGA/RS232)
• High capacity battery, battery charger, vehicle charger
• Smart card reader, HF/UHF RFID modules, 1D/2D barcode scanner
• Carry bag, hand strap, shoulder strap, VESA mount kit

caractéristiques / spécifications techniques

• Brand: Winmate
• Model: M101EK-ME
• Display: 10.1" IPS, 1920x1200, 800 nits, optical bonding
• Processor: Intel Celeron N6211 (default); Intel Pentium N6415 (optional)
• Memory: 4GB default, up to 8GB
• Storage: 128GB SSD default; up to 512GB optional; micro SDXC slot
• OS: Windows 11 IoT Enterprise LTSC (64-bit) default
• Battery: Hot-swappable 7.4V Li-Polymer (5140 mAh default; 10280 mAh optional)
• Ruggedness: IP65, MIL-STD drop/shock/vibration ratings
• Certifications: CE, FCC, IEC/EN 60601-1, IEC/EN 60601-1-2, UL 60601-1
• Dimensions: 271.9 x 197.3 x 19.5 mm
• Weight: 1.2 kg (standard battery)
• Cameras: 2MP front, 8MP rear (AF + LED)
• Ports: USB-A 3.0, USB-C 3.0 (PD), Micro HDMI (optional), Micro SD, SIM slot, audio combo jack
• Wireless: WLAN, Bluetooth; WWAN optional (4G/5G); GNSS supported
