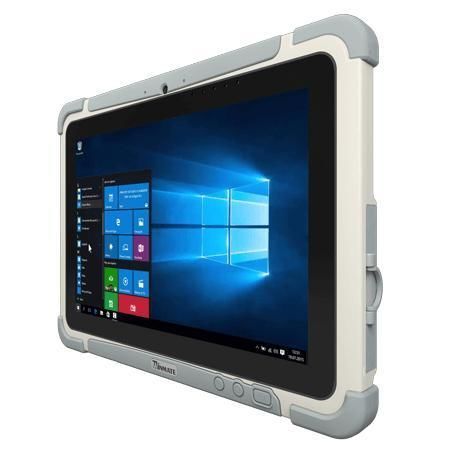

Windows 10 IoT Enterprise tablet M101P-ME

10.1"Intel® Pentium® N42008 GB

Overview
The Winmate M101P-ME is a 10.1‑inch medical‑grade rugged Windows tablet designed for hospital workflows, clinical carts, ambulances and medical equipment integration. It features an antimicrobial housing, direct optical bonding display with anti‑glare treatment, fanless thermal design and hot‑swappable battery support. The platform supports multiple integrated and optional data‑capture and wireless modules (1D/2D barcode, RFID, WWAN, GNSS) and holds medical and rugged certifications for clinical deployment.

Key Features

• 10.1‑inch 1920 x 1200 IPS display with direct optical bonding and anti‑glare
• Intel® Pentium® N4200 processor (fanless)
• Antimicrobial housing suitable for frequent disinfection
• Hot‑swappable battery design (standard and high‑capacity options)
• USB 3.0 Type‑A and USB 3.0 Type‑C (PD 3.0 charging)
• Optional 1D/2D barcode scanner, HF/UHF RFID, smart card reader
• Rugged: IP65 front, MIL‑STD‑810G shock/vibration/drop

Certifications & Compliance

• IEC/EN 60601‑1, IEC/EN 60601‑1‑2; UL 60601‑1 (medical safety/EMC)
• CE, FCC, UL; PTCRB, carrier certifications (model/region dependent)
• MIL‑STD‑810G; IP65; Wi‑Fi and Bluetooth SIG

Product Highlights and Use Cases

• Designed for point‑of‑care: patient identification, medication scanning, clinical documentation
• Mounting and docking for clinical carts, desks and vehicle installations (vehicle cradle/dock available)
• Antimicrobial housing and IP65 front for routine cleaning and infection control
• Optional data capture (barcode, RFID, smart card) to integrate with inventory, EMR and IoMT systems
• Fanless, rugged design for continuous operation in clinical and mobile environments

Included / Optional Accessories

• Included: adapter & power cord, capacitive stylus, standard battery
• Optional: desk dock, vehicle dock/cradle (with/without VGA), battery charger, high capacity battery, smart card reader, hand/shoulder straps, VESA mount kit, carry bag, vehicle charger, metal vehicle docking, 1D/2D barcode scanner

Embedded Video
Product guide and demo video available on the product page.

Technical specifications

• Display: 10.1‑inch P‑CAP multi‑touch IPS, 1920 x 1200, 600 nits, 800:1 contrast, optical bonding, anti‑glare
• CPU: Intel® Pentium® N4200 (1.1 GHz, up to 2.5 GHz)
• Memory: 4 GB default, 8 GB optional
• Storage: 128 GB SSD default; optional 256/512 GB SSD; micro SDXC slot
• OS: Windows 10 IoT Enterprise (64‑bit)
• Security: TPM 2.0, Kensington lock support
• Wireless: Wi‑Fi, Bluetooth; optional WWAN 4G LTE; GNSS (GPS/GLONASS)
• RFID: HF 13.56 MHz optional; add‑on UHF optional
• Cameras: front 2 MP; rear 8 MP AF + LED
• Sensors: ambient light, G‑sensor, gyro
• I/O: 1x USB 3.0 Type‑A; 1x USB 3.0 Type‑C (PD 3.0); micro HDMI (optional); 3.5 mm audio combo; micro SDXC; micro SIM; expansion connector (USB2.0/RS232 optional)
• Dimensions: 271.9 x 197.3 x 19.5 mm
• Weight: ~1.2 kg (standard battery); ~1.4 kg (high capacity)
• Battery: hot‑swappable 7.4V typ. 5140 mAh (std); optional 7.4V typ. 10280 mAh
• Battery life: standard battery ≈ 8 hours (typical)
• Power: adapter 100–240 V, 50–60 Hz → 19 V DC
• Operating: 0 to 35 °C; storage: −30 to 70 °C; humidity 10%–90% RH (non‑condensing)
• Ruggedness: MIL‑STD‑810G (shock/vibration/drop), drop spec ~4 ft; IP65
• Management: SOTI MobiControl compliance
