Android 9.0 tablet M101Q8-ME

10.1"Qualcomm Snapdragon 660Octa-core 2.2 GHz

Product Overview

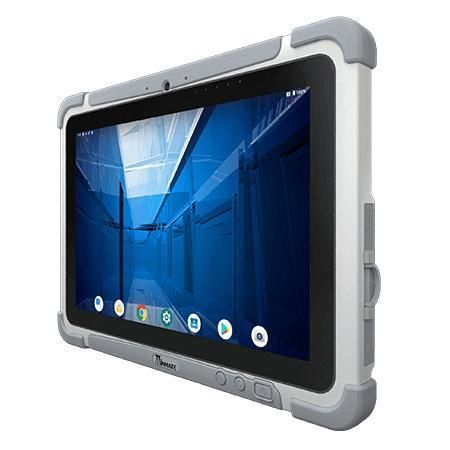

The Winmate M101Q8-ME is a 10.1-inch Android healthcare rugged tablet powered by Qualcomm® Snapdragon™ 660, engineered for hospital workflows, clinical carts, medical equipment integration and emergency vehicle installations. It combines a sunlight-readable display, antimicrobial housing and IP65 sealing to support frequent cleaning and continuous clinical use.

Key Features

• Qualcomm® SDA660 Kryo 260 CPU, Octa-core up to 2.2 GHz
• 10.1-inch TFT LCD, 1920 x 1200, projected capacitive multi-touch with optical bonding
• 3 GB RAM, 32 GB eMMC storage; Android 9.0
• Antimicrobial housing (silver ion technology and inorganic additives)
• Rugged, lightweight design; IP65 ingress protection; MIL-STD-810G tested
• 13 MP rear camera (LED auxiliary light, AF) and 8 MP front camera

Certifications & Compliance

• MIL-STD-810G (shock, vibration, drop)
• IP65 ingress protection
• CE, FCC, IC
• IEC/UL 60601-1 and IEC 60601-1-2 (medical electrical equipment standards)
• ANSI/AAMI ES 60601-1
• ISO 13485:2003

Design & Hygiene
The enclosure incorporates antimicrobial additives and silver ion technology to reduce microbial growth. Surfaces tolerate routine disinfection with wipes, sprays and liquids. Protective over-moldings, sealed battery contacts and protective plugs maintain IP65 sealing during clinical cleaning procedures.

Performance & Power
The Snapdragon 660 platform balances performance and power efficiency. Standard battery: 7.4 V typ. 5140 mAh Li-Polymer (BS101) with ~8 hours typical operating time. Optional warm-swappable battery available for continuous operations and vehicle deployments.

Connectivity, Sensing & Data Capture
The M101Q8-ME supports WLAN, Bluetooth, GNSS (GPS/GLONASS), default RFID (Read/Write, peer-to-peer), and optional 3G/4G/LTE. Multiple sensors (ambient light, e-compass, gyroscope, accelerometer) and optional integrated 1D/2D barcode reader and NFC support secure identification and real-time data capture.

Use Cases
Designed for bedside charting, clinical carts, medical device integration, EMS/ambulance installations and telemedicine workflows. Compatible with vehicle docks, VESA mounts and cart cradles for in-vehicle or cart-based deployments.

Technical Specifications

• Model: M101Q8-ME
• Brand: Winmate
• Display: 10.1-inch TFT LCD, 1920 x 1200, P-CAP multi-touch, optical bonding, 800 nits
• Processor: Qualcomm® Snapdragon™ 660 (Octa-Core up to 2.2 GHz)
• Memory / Storage: 3 GB RAM / 32 GB eMMC (microSD expandable)
• OS: Android 9.0
• Cameras: Rear 13 MP (LED, AF) / Front 8 MP
• Dimensions: 271.9 x 197.3 x 19.5 mm; Weight: 1.2 kg
• Battery: 7.4 V typ. 5140 mAh Li-Polymer (BS101); optional hot/warm-swap
• Operating time: ~8 hours (typical)
• Ports: 1 x USB 3.0 Type-C OTG, 1 x USB 2.0 Type-A, audio combo, Micro SD, SIM, docking connector
• Environmental: Operating humidity 10%–90% RH (non-condensing); operating temp (battery) 0°C–35°C; storage -40°C–70°C
• Ruggedness: MIL-STD-810G, Drop 4 ft, Vibration; IP65; ESD Contact 8 kV / Air 15 kV
• Security & Management: SOTI MobiControl compliance, Kensington Lock
• Accessories: Adapter & power cord, standard battery, capacitive stylus; optional desk dock, vehicle dock/cradle, battery charger, straps, VESA kit, barcode reader, vehicle charger, adapters
