Box PC IBDRW100-EX-P

DIN railIntel® Atom x7-E3950Intel® Apollo Lake E3950

Overview

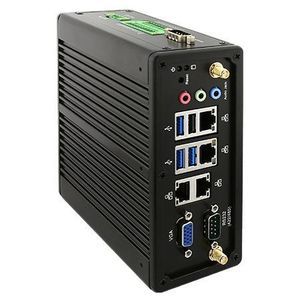

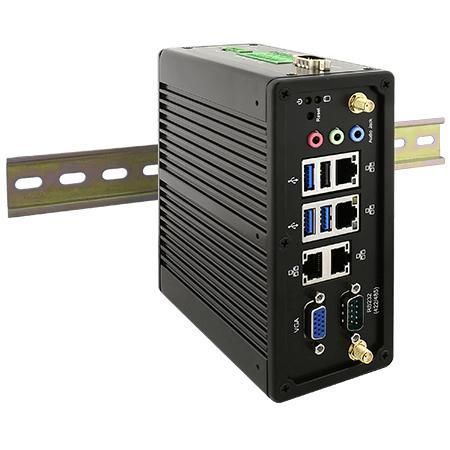

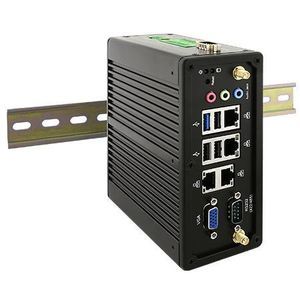

Winmate IBDRW100-EX-P is a DIN-rail box PC certified for ATEX / Class I, Division 2 (C1D2) hazardous locations. It integrates an Intel® Atom® E3950 processor in a fanless aluminum enclosure and is intended for oil & gas, chemical processing and industrial automation applications requiring front/top I/O access and wide operating temperature support.

Key Features

• ATEX / Class I, Division 2 (C1D2) suitability for hazardous areas
• DIN-rail mount form factor for cabinet and control-panel installations
• Onboard Intel® Atom® E3950 (1.6 GHz, up to 2.0 GHz)
• Selectable RS232/422/485 serial mode via BIOS
• 4 x Gigabit LAN, 3 x USB 3.0, 1 x USB 2.0, 1 x VGA, standard audio I/O
• Fanless passive cooling and aluminum housing
• Wide operating temperature: -40°C to 70°C
• AWS IoT Greengrass certified for edge/IoT integration

Certifications

• CE, FCC, IC
• UL 62368-1, EN 62368-1, CSA C22.2 No. 62368-1-14
• Class I, Div.2, Groups A,B,C,D T4(T5)
• CAN/CSA C22.2 NO. 213-17, UL 121201 Ed.9
• MIL-STD options for shock & vibration

System Specification

• Processor: Intel Atom E3950 (1.6 GHz, burst to 2.0 GHz); E3940/E3930 options
• Memory: 4 GB default, up to 8 GB optional
• Storage: 128 GB SSD default; optional 256/512 GB; M.2 2242 B-key (SATA), 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 4 x Intel® Gigabit LAN (RJ45)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise 64-bit (optional), Linux Ubuntu 20.04 (optional)
• WLAN/Bluetooth: optional via M.2 2230 E-key

Mechanical

• Dimensions: 139 x 65.4 x 152 mm
• Weight: 1.5 kg
• Mounting: DIN-rail
• Enclosure: Aluminum, fanless design

Environment

• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: -40°C to 70°C
• Storage temperature: -40°C to 80°C
• Shock & vibration: MIL-STD-810 options available

I/O Ports

• USB: 3 x USB3.2 Gen1 (Type-A); 1 x USB2.0
• Serial: 1 x RS232/422/485 DB9 (selectable); 1 x isolated RS422/485 DB9 (optional)
• LAN: 4 x Gigabit RJ45
• Video: 1 x VGA DB15
• Audio: Mic in, Line in, Line out
• DIDO: 1 x isolated 5V 9-in/9-out DIO (20-pin terminal block); optional 30V DIO configurations
• Power: Isolated 9–36V DC input via 3-pin terminal block

Power & Accessories

• Power range: 9 V to 36 V DC
• Typical adapter: 12 V, 84 W (kit dependent)
• Included items: AC 100–240V to DC adapter, power cord, terminal block connectors for DIDO, DIN-rail mounting kit, cable holders
• Optional accessories: DIN Rail Mounting Clip (DR-MC), Cable Holder Kit (DR-CH)

Product Safety Notes

• The suffix "-EX" designates explosion-hazard suitability; observe electrical safety procedures in hazardous locations.
• Fanless design reduces moving parts; verify surface temperature limits and cable termination procedures for C1D2 installations.
• Do not connect/disconnect I/O or power under live conditions in hazardous areas; use secure terminal connections.

Applications & Technical Summary

• Model: IBDRW100-EX-P
• Typical uses: pipeline monitoring, refinery automation, chemical dosing and hazardous-area gateways
• Key specs: Intel® Atom® E3950, 4 GB default (8 GB opt.), 128 GB SSD default, 4 x GbE, RS232/422/485, DIN-rail mount, ATEX/C1D2 certified
