Box PC IBDRW100-EX

DIN railIntel® Celeron N2930RS-232

Overview

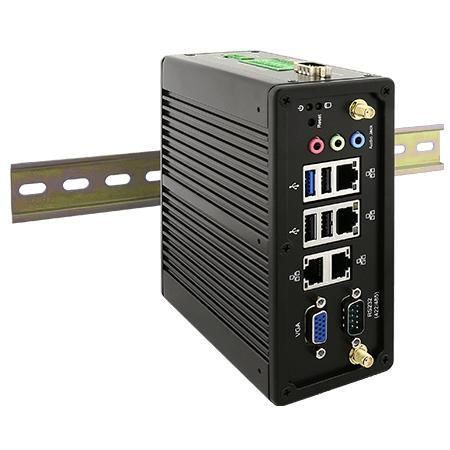

The Winmate IBDRW100-EX is an ATEX and Class I, Division 2 certified DIN-rail embedded PC powered by an Intel® Celeron® N2930. Engineered for hazardous-area industrial applications such as oil & gas and chemical processing, the unit features a fanless aluminum enclosure, front/top I/O access and extended-temperature operation for reliable field deployment.

Key Features

• ATEX Zone 2 (II 3G Ex nA IIC T4 Gc) and Class I, Division 2 certified for hazardous area use
• Designed for DIN-rail industrial automation and control cabinets
• Intel® Celeron® N2930 processor (1.83–2.16 GHz)
• 1 x RS232/422/485 (jumper selectable)
• 4 x Gigabit LAN, 1 x USB 3.0, 3 x USB 2.0, 1 x VGA, audio line out, isolated DC input
• Fanless design and aluminum housing for passive heat dissipation
• Wide operating temperature: -20°C to 60°C
• AWS IoT Greengrass certified

Certifications

• ATEX II 3G Ex nA IIC T4 Gc (Zone 2)
• Class I, Division 2, Groups A,B,C,D (C1D2)
• CE, FCC
• UL 508; CSA C22.2 No.142-m1987
• UL 60950-1; CSA C22.2 No. 60950-1-07; EN 62368-1
• EN 60079-0; EN 60079-15
• MIL-STD-810G (vibration/shock options)

Product highlights and intended use
Dual certification (ATEX and C1D2) and compact DIN-rail format make the IBDRW100-EX suitable as a remote data collector, protocol gateway or HMI node in hazardous-area control systems. The front/top I/O layout simplifies wiring and maintenance in control cabinets and field enclosures.

System Specification

• Processor: Intel® Celeron® N2930 (1.83–2.16 GHz)
• Memory: 1 x SO‑DIMM DDR3L 1600 MHz; 4 GB default; up to 8 GB optional
• Storage: mSATA SSD 128 GB default; optional 256/512 GB; optional SATA III for 2.5" drive
• Ethernet: 4 x Intel® Gigabit Ethernet controllers (one port may be disabled if WLAN installed)
• Security: TPM (optional)
• OS: Windows 7 Embedded / Windows 10 IoT Enterprise (64-bit) / Ubuntu 20.04 (optional)
• WLAN/BT: optional via mPCIe; Expansion: 2 x mPCIe slots

Mechanical

• Dimensions: 139 x 65.4 x 152 mm
• Weight: 1.5 kg
• Mounting: DIN-rail
• Enclosure: Aluminum housing
• Cooling: Fanless

Environment

• Operating temperature: -20°C to 60°C
• Storage temperature: -40°C to 80°C
• Operating humidity: 10% to 90% RH, non-condensing
• Shock & vibration: MIL-STD-810G options

I/O Ports

• USB: 1 x USB3.2 Gen1 (Type-A), 3 x USB2.0 (Type-A)
• Serial: 1 x RS232/422/485 DB9 (default RS232), 1 x isolated RS422/485 DB9 (default RS422)
• LAN: 4 x Gigabit RJ45
• Video: 1 x VGA DB15
• Audio: Mic in; Line in; Line out
• DIDO: 1 x isolated 5V 9-in/9-out DIO (20-pin terminal block); optional isolated 30V variants
• Power input: 1 x isolated 9–36V DC via 3-pin terminal block

Power

• Input: Isolated 9–36V DC (3-pin terminal block)
• Adapter: 12V 36W (typical accessory)

Control & Buttons

• Reset button x1

Accessories (included / optional)

• Included: 100~240V AC to DC adapter, power cord, terminal block connectors, open-wire cable, DIN-rail mounting kit, cable holders
• Optional: DIN rail mounting clip (DR-MC), cable holder kit (DR-CH), additional mSATA/SSD, WLAN modules

Applications

• Wellhead monitoring, chemical tank monitoring, refinery data gateway, hazardous-area industrial automation gateways

Technical specifications

• Model: IBDRW100-EX
• Brand: Winmate
• CPU: Intel® Celeron® N2930 (1.83–2.16 GHz)
• Memory: 4 GB DDR3L (default), up to 8 GB optional
• Storage: mSATA SSD 128 GB (default); SATA III option for 2.5" drive
• I/O: 4 x GigE, 4 x USB (1x USB3.0 + 3x USB2.0), RS232/422/485, VGA, audio
• Power: 9–36V DC isolated
• Operating temperature: -20°C to 60°C
• Certifications: ATEX Zone 2; Class I Div.2; CE; FCC; UL; CSA; EN 62368-1
