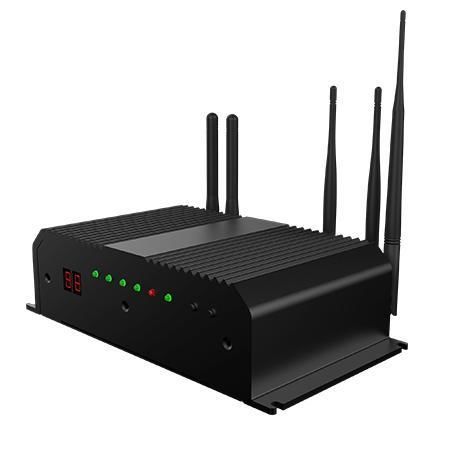

Communication gateway RG100

industrialtelemetrytelematics

Overview
RG100 is a RoIP radio gateway (Radio over IP) engineered for industrial automation, embedded systems and mission-critical communications. Designed for both vehicle-mounted and fixed installations, it converts analog and digital radio voice into IP packets to bridge Land Mobile Radios, dispatch consoles and smartphone clients across LTE/Wi‑Fi/Ethernet networks.

Key features

• Wireless connectivity: 4G/LTE and Wi‑Fi plus Ethernet
• Secure recording: local inbox and Larzio Cloud support
• Radio interoperability: narrowband and broadband (VHF/UHF)
• Supports up to two donor radios; analog and digital radio bridging
• Web-based management, HTTPS, firmware upgrade and config backup/restore

Applications / Use cases
Suitable for public safety (police, fire, EMS), fleet and logistics, mining, utilities and OEM/system integrators. Typical uses include vehicle retransmission (ambulance, fire engines), remote site coverage extension via LTE, interoperability between VHF and UHF users, and centralized recording for audits.

Interoperability & connectivity
Supports SIP, RTP, NTP, DNS, DHCP and SSH. WAN options: Static IP / DHCP; LAN and dual radio interfaces (RJ‑45). IO includes 2x USB 3.0, microSD slot and SIM slot. Indicators and DIDO available for integration with external systems.

Certifications & robustness
Certified CE and FCC. Metal enclosure with VESA mounting, compact dimensions and vehicle power range make RG100 suitable for rugged and in‑vehicle environments. Vibration compliance per MIL‑STD‑810G is listed in product literature.

Technical specifications

• Model: RG100
• Function: Radio Gateway (RoIP)
• Recording: Local storage + Larzio Cloud option
• Router management: Web based configuration; HTTPS; web software upgrade; configuration backup/restore; reset to default
• Network security: HTTPS
• WAN: Static IP, DHCP
• Network protocols: SIP Client; NTP Client; DNS Client; Web Server; DHCP Server; SSH Server
• IPv4 support
• IO ports: 2 x USB 3.0; 1 x Micro SD card slot; 1 x SIM card slot
• Indicators: Radio, WAN, LAN, Register, Alarm, Power
• DIDO: 4 x DI, 4 x DO
• RJ‑45: 1 x WAN, 1 x LAN, 2 x Radio
• Power: 9 ~ 36 V DC input (Terminal Block); vehicle ignition sense supported
• Memory: 4 GB RAM
• Storage: 64 GB SSD onboard
• Operating system: Ubuntu (spec); Android also referenced in FAQ
• RF: VHF 134–174 MHz or UHF 400–470 MHz
• LTE bands: B1 / B3 / B5 / B7 / B8 / B20 / B28 / B32
• WLAN: supported (Wi‑Fi)
• Transmitter: TX Power 4 W; RX sensitivity ≤ -121 dBm
• Channel spacing: Analog 12.5 kHz / 25 kHz; Digital 12.5 kHz
• Dimensions: 205 x 110 x 55 mm
• Mounting: VESA mount
• Enclosure: Metal
• Operating temperature: 0 ~ 60 °C
• Vibration: MIL‑STD‑810G Method 514.6
• Controls: 1 x Power switch; 2 x Channel change buttons
• Certifications: CE, FCC
