Communication gateway RG100-SUIT

industrialIoTWLAN

Overview

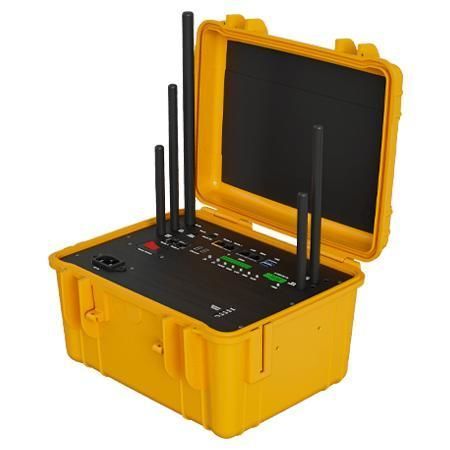

Winmate RG100-SUIT is a portable RoIP (Radio over IP) radio gateway integrated into a rugged carrying case for industrial automation, embedded systems and mission-critical field operations. The kit includes the RG100 gateway unit, antennas, built-in 108.5Wh battery and power management to provide a compact, man-portable communication hub with 4G/LTE, WLAN and Ethernet connectivity.

Key Features

• Wireless backhaul: 4G/LTE and WLAN
• Supports DMR and one VHF or UHF donor radio (configurable)
• Secure recording and cloud integration (Win Radio Cloud)
• Facilitates migration of analog and digital radio systems
• Built-in 108.5Wh battery for extended portable operation

Seamless Communication Platform
The RG100-SUIT combined with a WinVoIP server creates a bridge between radios and IP devices, enabling teams to communicate via radios or smartphone apps and coordinate responses in the field.

Bridging Public Safety Radios with IP Devices
The unit supports direct connection of up to two donor radios (expandable) to interconnect different radio networks, endpoints or frequencies and enable interoperability between organizations and devices.

Enhancing Rescue Operations Efficiency
When local radio coverage is weak the RG100-SUIT can be deployed in emergency vehicles or at temporary command posts and use cellular or cloud backhaul to maintain communications between field teams and command centers, linking radios and smartphone applications.

Efficient Power Supply
The system includes a 108.5Wh internal battery module (typical runtime 8–12 hours depending on usage). Supports AC charging and vehicle DC charging (9–36 V DC input) for flexible field power management.

Certifications

• CE
• FCC

Technical specifications

• Model: RG100-SUIT
• Brand: Winmate
• System: Ubuntu OS; 4 GB RAM; 64 GB SSD
• Router management: web-based configuration, HTTPS, web upgrade, backup/restore, reset button
• Network / Security: HTTPS; WAN: Static IP, DHCP; Protocols: SIP, NTP, DNS, Web Server, DHCP Server, SSH; IPv4
• IO ports: 2 x USB 3.0; 1 x Micro SD; 1 x SIM slot; Indicators: Radio, WAN, LAN, Register, Alarm, Power; DIDO: 4 DI, 4 DO
• RJ-45: 1 x WAN, 1 x LAN, 2 x Radio (options: 4 or 6 radio ports)
• RF: VHF 134–174 MHz or UHF 400–470 MHz; LTE Bands B1/B3/B5/B7/B8/B20/B28/B32; WLAN supported
• RF performance: TX 4 W; RX sensitivity ≤ -121 dBm; Channel spacing analog 12.5/25 kHz, digital 12.5 kHz
• Mechanical: 274 x 227 x 155 mm; Weight: ~4.5 kg (product) — suitcase configurations typically 5–8 kg
• Enclosure: industrial hard plastic case (water/dust protection when closed)
• Power input: 9–36 V DC (terminal block), AC supported
• Battery: built-in 108.5Wh; typical runtime ~8–12 h
• Environment: Operating temperature 0–60 °C; Vibration MIL-STD-810G Method 514.6
• Control: 1 x power switch; 2 x channel buttons
