Display evaluation board WL0F00088000BGXAANA00

Overview

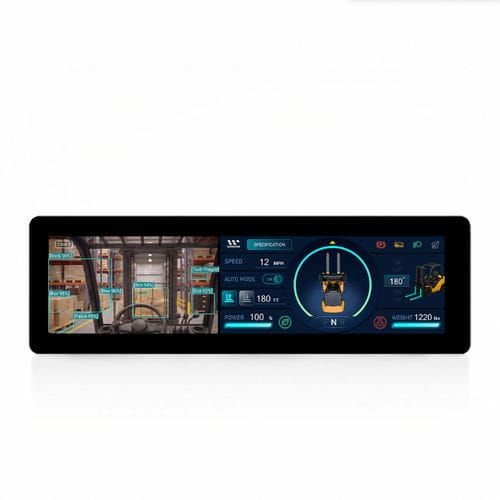

WINSTAR WL0F00088000BGXAANA00 is an 8.8-inch bar-type Edge AI development board based on the STM32N657 MCU. It targets embedded AI vision and advanced MCU-based HMI projects, combining an ultra-wide IPS PCAP display, MIPI CSI-2 and parallel camera inputs, multiple field interfaces and on-device AI inference capabilities on a validated MCU platform.

Key capabilities

• Display: 8.8 inch ultra-wide IPS, 1920 × RGB × 480 (4:1 bar type)
• Touch: Projected Capacitive Touch (PCAP)
• MCU: STM32N657 with 32 MB RAM; external Flash 64 MB
• Camera: MIPI CSI-2 and parallel camera interfaces
• Interfaces: CAN FD, RS485, RS232, Ethernet (LAN), USB-C, UART, SPI, I2C, GPIO
• Power: Operating voltage 9–36 Vdc
• Brightness: Typ. 450 cd/m² (Min. 350 cd/m²)
• Software: Support for ST TouchGFX; on-device audio wake-word and speech recognition support

Applications

• Embedded AI vision systems (image recognition, object detection, anomaly detection)
• Industrial control panels and HMI with wide-format displays
• 2U rack or low-profile instrument panels
• Off-highway vehicle dashboards and machine operator panels
• Equipment monitoring and smart appliances

Demo Kit & evaluation
WINSTAR offers a Demo Kit that bundles the 8.8" HMI board, a validated camera module and accessories for rapid evaluation and prototyping of AI vision and HMI applications.

Product notes
Model: WL0F00088000BGXAANA00. Product status: reliability validation in progress; mass-production samples expected from October.

Technical specifications (key excerpts)

• Operating voltage: 9 V ~ 36 V (dynamic)
• MCU: STM32N657
• RAM: 32 MB; External Flash: 64 MB
• LCD size: 8.8 inch; Dot matrix: 1920 × RGB × 480
• Active area: 218.88 (H) × 54.72 (V) mm; Module dims: 241.3 × 74.3 × 28.7 mm
• Pixel pitch: 0.114 × 0.114 mm; Brightness: Min 350 / Typ 450 cd/m²
• Operating temp: -20 °C to +70 °C; Storage temp: -30 °C to +80 °C
• BOM: LCM = WF88BTYA8MNG10#; PCBA = PB4V0008R800BD661X00

Interface & pin summary

• CON1: VIN, +3V3 (JTAG), SWCLK, SWDIO, NRST, BOOT0, SPI (CS/CLK/MOSI/MISO), UARTs, I2C, ADC/PWM/GPIO pins
• CON3: CAN_H / CAN_L (CAN bus)
• CON4: RS485_A / RS485_B
• CON6: MIPI CSI lanes (D0/D1/CLK), CAM I2C (SCL/SDA), CAM_NRST, CAM_EN, VDD_CAM (+3.3V), TOF/IMU interrupts, GND

Note
Platform optimized for low-latency, privacy-sensitive Edge AI and HMI implementations on MCU architectures. Suitable for rapid prototyping and volume integration where Linux-based systems are not required.
