LED display WFN0570A2T0WADNT000
TFT LCDIPStouch screen

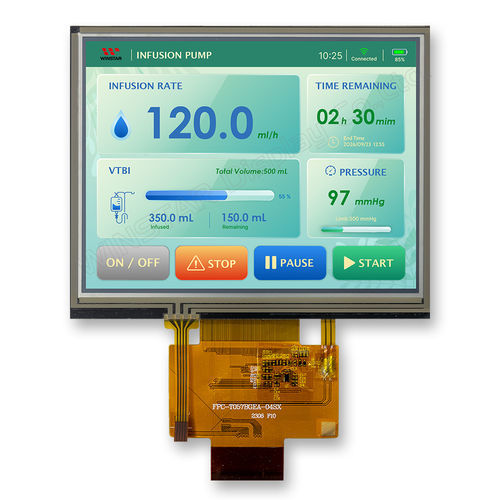

LED display - WFN0570A2T0WADNT000 - WINSTAR Display Co., Ltd. - TFT LCD / IPS / touch screen

LED display - WFN0570A2T0WADNT000 - WINSTAR Display Co., Ltd. - TFT LCD / IPS / touch screen - image - 2

LED display - WFN0570A2T0WADNT000 - WINSTAR Display Co., Ltd. - TFT LCD / IPS / touch screen - image - 3

LED display - WFN0570A2T0WADNT000 - WINSTAR Display Co., Ltd. - TFT LCD / IPS / touch screen - image - 4

Add to favorites

Compare this product

Characteristics

Screen type

LED, TFT LCD, IPS, touch screen, resistive touch screen

Type

color, dot-matrix

Format

640 x 480

Screen size

5.7"

Applications

industrial, HMI

Interface

RGB

Other characteristics

backlit, LED-backlit

Length

124.7 mm
(4.909 in)

Width

100 mm
(3.937 in)

Thickness

7.41 mm
(0.292 in)

Operating temperature

Min.: -30 °C
(-22 °F)

Max.: 80 °C
(176 °F)

Description

Product Overview

Model No.: WFN0570A2T0WADNT000
Type: 5.7-inch wide temperature IPS TFT LCD module with a Resistive Touch Panel (RTP)
Resolution: 640 x 480 pixels (4:3 aspect ratio)
Typical brightness: 400 cd/m2 with anti-glare surface

Key Features

IPS panel with wide viewing angles: 89/89/89/89 degrees
18-bit RGB interface (SYNC+DE mode)
Driver IC: JD9168S or equivalent
Touch: Resistive Touch Panel (RTP)
Backlight: LED, normally white
Operating temperature range: -30°C to +80°C (wide temperature)
Typical TFT supply: 3.15 V (operating range 3.0 to 3.3 V)

Mechanical

Size: 5.7 inch
Module dimension: 124.7 x 100 x 7.41 mm
Active area: 115.2 x 86.4 mm
Pixel pitch: 0.18 x 0.18 mm
Aspect ratio: 4:3

Electrical & Optical

Dot matrix: 640 x RGB x 480 (TFT)
Typical brightness: 400 cd/m2
Surface: Anti-Glare
Power supply voltage (VCC): Min 3.0 V, Typ 3.15 V, Max 3.3 V
Power supply current (ICC): Typ 50 mA, Max 75 mA
LED driving: ILED Typ 80 mA; VLED+ Typ 18.0 V (Min 15.6 V, Max 19.2 V); LED life time Typ 50,000 Hr

Interface & Control

Interface: RGB 18 bits, SYNC+DE mode
Pixel clock / sync / DE signals required for RGB operation
TFT driver IC: JD9168S or equivalent

Applications

Industrial HMI
Control equipment
Instrumentation
Embedded applications requiring resistive touch input and wide temperature operation

Technical specifications

Model: WFN0570A2T0WADNT000
Size: 5.7 inch
Resolution: 640 x 480 pixels
Dot matrix: 640 x RGB x 480 (TFT)
Module dimension: 124.7 x 100 x 7.41 mm
Active area: 115.2 x 86.4 mm
Pixel pitch: 0.18 x 0.18 mm
LCD type: TFT, Normally Black, Transmissive
View angle: 89/89/89/89 (IPS)
Aspect ratio: 4:3
Backlight type: LED, Normally White
Brightness (typ): 400 cd/m2
Surface treatment: Anti-Glare
Touch panel: Resistive Touch Panel (RTP)
TFT Driver IC: JD9168S or Equivalent
TFT Interface: RGB 18 bits, SYNC+DE mode
Supply voltage (VCC): Min 3.0 V, Typ 3.15 V, Max 3.3 V
Power supply current (ICC) @ VCC=3.0V: Typ 50 mA, Max 75 mA
Input voltage levels: VIH (H) Typ 0.7 VCC; VIL (L) Typ 0 to 0.3 VCC
LED driving conditions: ILED Typ 80 mA; VLED+ Typ 18.0 V (15.6 to 19.2 V); LED life time Typ 50,000 Hr
Operating temperature (TOP): Min -30°C, Max +80°C
Storage temperature (TST): Min -30°C, Max +80°C
Frame through hole: No
Control board: No (module only)
Typical application areas: industrial HMI, control equipment, instrumentation, embedded systems
Mechanical drawing and contour drawing available from the manufacturer (module outline and mounting details)
Interface pin highlights (LCM PIN Definition): Pin1 GND; Pin2 VCC; Pin3 VCC; Pin4 GND; Pin9 UD (up/down selection); Pin10 LR (left/right selection); Pin11 /CSX (chip select for touch controller, connect to VCC if unused); Pin12 SCL (SPI serial clock, if used); Pin13 SDA (SPI serial data, if used); Pin15 GND; Pins 16-21 B5-B0 (Blue data bus bits); Pins 25-30 G5-G0 (Green data bus bits); Pins 37-42 R5-R0 (Red data bus bits); Pin43 VLED-; Pin44 VLED+; Pin45 DE; Pin46 CLK; Pin47 HS; Pin48 VS; Pin50 GND
