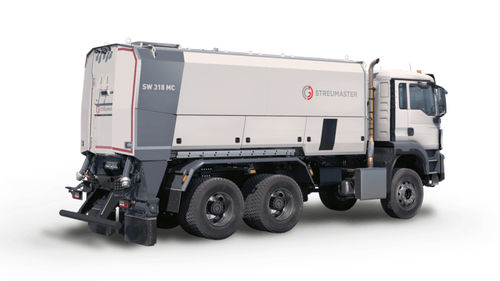

Towable binder sprayer SW 318 MC

truck-mounted

Overview
STREUMASTER binding agent spreaders are intended for spreading large quantities during soil stabilization and for precise application of small quantities during cold recycling. They are offered as vehicle-mounted (M - Mounted) and towed (T - Towed) variants and primarily use cellular-wheel spreading units (C - Cellular Wheel).

Design and variants
The MC series are mobile spreaders mounted on a carrier vehicle, suitable for use in difficult off-road conditions. TC and MC series provide a maximum spreading width of 2,360 mm and can deliver spreading rates up to 60 kg/m2 at 2 km/h with a binder density of 1 kg/l.

Applications

• Soil stabilization
• Cold recycling
• Road construction and earthworks
• Combined use with WIRTGEN GROUP equipment to cover complete process steps

Operation and integration

• Available as mounted (M) or towed (T) units to match carrier vehicle requirements
• Cellular-wheel spreading unit for controlled dosing
• Adjustable spreading rates and widths to suit application demands
• MC series designed for carrier vehicles in off-road environments

Technical data (example)

• Max spreading width: up to 2,360 mm
• Max spreading rate: up to 60 kg/m2 at 2 km/h (binder density 1 kg/l)
• Variants: M - Mounted, T - Towed
• Spreading unit: Cellular wheel (C)
