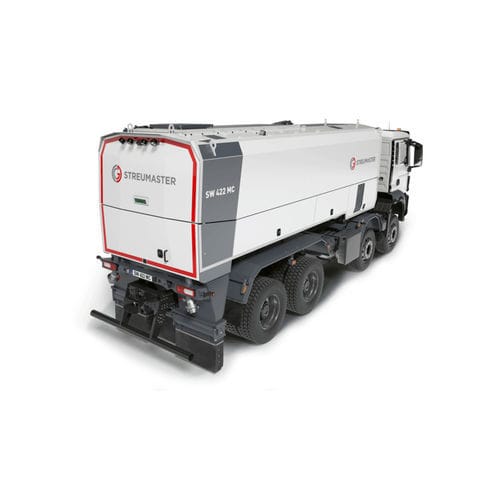

Towable binder sprayer SW 422 MC

Precise binding agent spreading for stabilization and cold recycling
STREUMASTER binding agent spreaders are designed to spread both large quantities for soil stabilization and very small quantities with high precision for cold recycling.

Configurations and spreading unit

• Vehicle variants: mounted (M - Mounted) and towed (T - Towed)
• Primary spreading unit: cellular wheel (C - Cellular Wheel)
• MC series: mobile units mounted on a carrier vehicle for difficult off‑road conditions

Performance and technical data

• Maximum spreading width: 2,360 mm
• Spreading capacity: up to 60 kg/m² (measured at 2 km/h with a binder density of 1 kg/l)
• Suitable for high-volume soil stabilization and precision application in cold recycling

Integration and typical applications
In combination with WIRTGEN GROUP products, STREUMASTER binding agent spreaders cover the full cycle of road construction and earthworks. Typical uses include road construction, pavement rehabilitation, site preparation and earthworks where controlled binder dosing is required.
