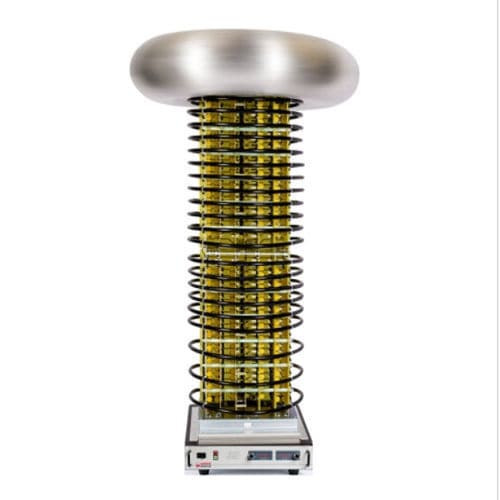

Floor power supply TB series

AC/ACwith short-circuit protectionwith overcurrent protection

Wisman TB series is a high-performance tower air-insulated high-voltage power supply dedicated for accelerator and capacitor charging and discharging. The TB series has a complete protection system. It can simulate remote control or computer remote control, constant voltage and constant current automatic cross control, high voltage output terminal overvoltage, overcurrent, short circuit protection, arcing, overtemperature protection and safety interlocking functions. Wide range of adjustment and flexible multiple optional functions. APPLICATIONS Capacitor Charging Electronic Component Aging Insulation Test High Voltage Testing Electron Beam /Ion Beam Focus Ion Beam Ion Inpouring Lithography Technology Electrostatic Applications Electrostatic Deflexion lectrospinning Electrophores is Capillary Electrophoresis Science Laboratory Applications Industrial Applications. SPECIFICATIONS Power: The maximum output power of a single machine is 4KW, and multiple machines are connected in parallel, and the maximum output power is 20KW. Voltage control: External analog remote control: external 0 to 10V control signal can adjust the output from 0V to the highest output voltage. Computer remote control. Current control: External analog remote control: external 0 to 10V control signal can set the current from 0 to the highest current. Computer remote control. Voltage regulation : Relative load: 0.005% (no load to rated load) Relative input: ±0.005% (input voltage change is ±10%)
