Signal amplifier AMY

programmablecurrent outputhigh-voltage

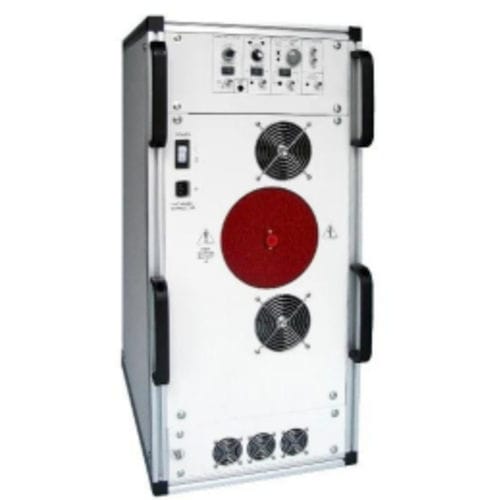

Wisman’s high voltage amplifier AMY40R600, output voltage ±40kV, output current 15mA, type is a high voltage power amplifier, used in industrial and research applications. All solid-state high voltage insulation design can achieve high conversion rate, wide bandwidth and low noise operation. The four-quadrant active output sinks or outputs current to reactive or resistive loads within the entire output voltage range. This type of output is essential for achieving accurate output response and the high slew rate required for various loads, such as high capacitive or reactive loads. The amplifier is a non-inverting amplifier. FEATURES AND ADVANCE Four-quadrant output for driving capacitive loads Closed loop system achieves high accuracy Short circuit protection for equipment protection All solid-state design, maintenance-free operation DC stable programmable power supply application Low output noise, providing ultra-precise output APPLICATIONS: Dielectric elastomer, soft robot, HASEL actuator (artificial muscle), electroactive polymer (EAP), ionic conductive polymer gel film (ICPF), pneumatic artificial muscle (PAM), electroviscous fluid (ER fluid), Magnetorheological fluid (MR Liquid), ferroelectric tester, Piezoelectric Drive and Control, Laser modulation, Semiconductor research, electrostatic deflection, electrorheological fluid, AC or DC bias, Particle Accelerator, Mass Spectrometer, Material Characterization, ferroelectric, Atmospheric plasma, Dielectric barrier discharge, dielectric barrier discharge (DBD), DBD plasma actuator, atmospheric pressure plasma, corona discharge, electrostatic suspension furnace (ELF)
