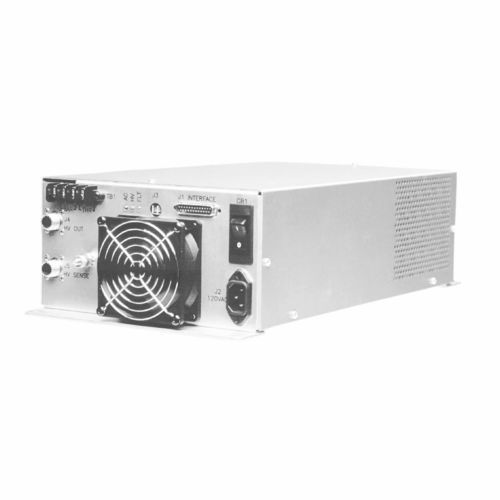

Tabletop power supply MED

AC/DCwith short-circuit protectionwith overheating protection

Wisman MED series has a maximum output voltage of 25kV and a maximum output power of 250W. It is a solid-state packaged high-stability and precise high-voltage power module that operates on AC power.The MED series features extremely low ripple and noise, analog interface control, fast response speed, the ability to provide both positive and negative high voltage outputs, strong anti-sparking capability, and a low trigger voltage. It is suitable for applications such as accelerators, ion beams, and ion implanters.MED series protection features overheat, overvoltage and undervoltage protection, arc detection, short circuit protection, etc. MED series can provide outstanding performance and value for various demanding applications, and it also accepts OEM customization. Product Features: 1. Voltage input: 108 - 123 Vac 2. Output: 0 to -25 kV 3. Output current: 10 mA 4. Control: 25-pin DB male connector 5. Dimensions (inches): 19.25 X 9.5 X 4.5 6. Protection: Overheat, overvoltage and undervoltage protection, arc detection, short circuit protection Example applications: Ion beam, ion implantation machine, anode bonding, accelerator, electrophoresis instrument, mass spectrometer, electron microscope, electrostatic coating machine, nanoknife, material pressure resistance test (high-voltage resistance test, high-capacity resistance test, insulating material resistance test), dielectric test, electrostatic field establishment, plastic screening, plastic sorting, capacitor charging, high-voltage flashover, agricultural breeding, static electricity removal, air purification, industry, scientific research.
