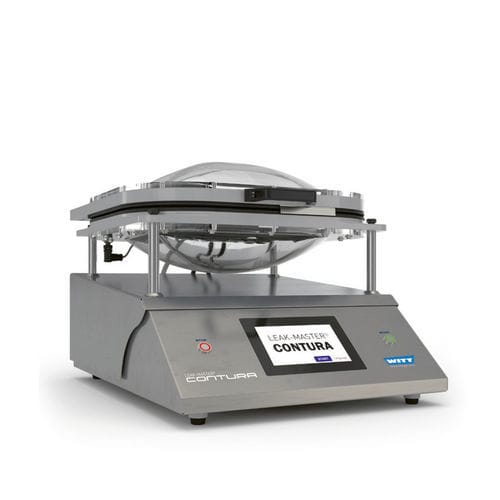

Pressure drop leak detector LEAK-MASTER® CONTURA

vacuumwith visual alarmwith integrated display

Overview
The LEAK-MASTER® CONTURA is a system for seal inspection of capsules, MAP and other packaging types using a patented differential-pressure (volume-change) method.

Key features

• Non-destructive sampling testing for a wide range of packaging types and components in food, pharmaceutical and similar sectors
• Sensitivity to fine leaks down to <10 μm and detection of gross leaks via rapid pressure-differential testing
• Visual status indication via LED
• Operates independently of test gases (no CO₂ requirement)
• Built-in vacuum pump — no compressed air needed
• Flexible membrane system for universal application
• Optional accessories: barcode reader, Pac-Check calibration device, Calibration-Kit

Information
LEAK-MASTER® CONTURA applies a patented method that detects volume changes by measuring pressure differentials, enabling fast, non-destructive detection of even the smallest leaks regardless of test gas. The system is suited to production and QA environments in the food and pharmaceutical industries and offers an intuitive LED result display and large touchscreen for operator interaction.

Benefits

• Detection of micro-leaks (<10 μm) in seconds
• Detection of gross leaks, including packages with little headspace
• Rapid, non-destructive test cycles suitable for in-line or sampling inspection
• Storage and evaluation of test results for documented output inspection (DIN ISO compatible)
• Hygienic design allowing simple and safe cleaning
• Capability to test single or multiple packages simultaneously

Options

• IP-protected barcode reader for quick user/product selection
• Pac-Check for leak-rate calibration
• Calibration-Kit for leak-rate and internal/external volume calibration

Technical specifications

• Detection method: patented differential-pressure (volume-change) method
• Gas independence: operates regardless of CO₂ or other test gases
• Leak detection sensitivity: down to <10 μm
• Test type: non-destructive, sampling; rapid cycle times (seconds)
• Vacuum source: built-in vacuum pump (no compressed air required)
• Result indication: LED visual indicator; large touchscreen for operation
• Data: storage and evaluation of test results; suitable for documented output inspection (DIN ISO)
• Design: flexible membrane system for many packaging types; hygienic construction for easy cleaning
• Options: IP barcode reader, Pac-Check, Calibration-Kit
