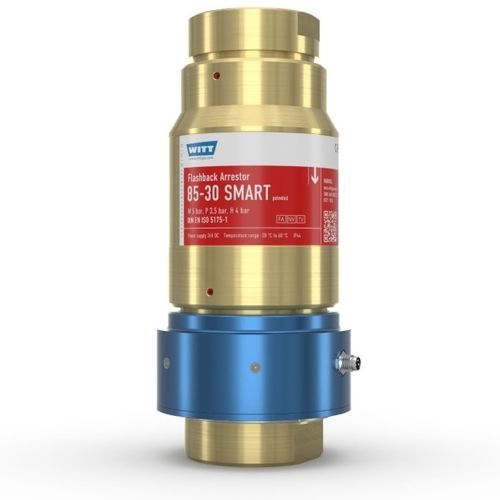

Flashback arrestor with inlet filter 85-30 SMARTwith check valvewith visual alarmresettable
Add to favorites
Compare this product
Characteristics
- Options
- with inlet filter, with check valve, with visual alarm, resettable
- Domain
- for welding applications, for flammable gas
Description
Overview
Safety elements
Smart features
Benefits
Approvals & conformity
Additional information
Technical specifications
- Smart flashback arrestor 85-30 SMART according to DIN EN ISO 5175-1, patented, designed for high maximum flows
- Reliable protection against reverse gas flow and flashbacks with integrated safety elements and electronic monitoring; every unit 100% factory-tested
- Dimensions: 95 x 213 mm; connection G1 1/2 (PED category I); material options: brass or stainless steel (ES)
- Max. free flow rates: acetylene ≤ 70 m³/h; fuel gases ≤ 675 m³/h; oxygen ≤ 860 m³/h
Safety elements
- Flame arrestor (FA) with large stainless-steel surface extinguishes dangerous flashbacks
- Temperature-sensitive cut-off valve (TV) stops sustained flashbacks before internal temperatures reach a dangerous level
- Spring-loaded non-return valve (NV) prevents slow or sudden reverse gas flow that could form explosive mixtures
- Inlet filter protects the device from contamination and extends service life
Smart features
- Electronic detection and timestamped recording of any flashback or backfire event
- Four LEDs (red/green/yellow/blue) provide visual status: normal operation, flashback, backfire, hardware fault, low battery
- Digital output via NPN open collector or RS485 for transmission to a control system
- Reset button on the device for acknowledging or resetting after an event
- Electrical connection: M8, 4-pin plug for signal cable (standard 5 m cable available as accessory)
- Not suitable for installation in hazardous (classified/Ex) areas
Benefits
- Immediate detection of flashbacks and backfires
- Early identification of fault sources before downstream components are damaged
- Supports planned, optimized maintenance based on event data
- Minimises downtime, increases service life and reduces operating costs
- Maximises protection for personnel and facilities
Approvals & conformity
- Manufacturer certified to ISO 9001 and PED 2014/68/EU Module H
- CE-marked according to PED 2014/68/EU
- Designed and cleaned for Oxygen Service in accordance with EIGA 13/20, EIGA 33/18 and CGA G-4.4 / G-4.1
Additional information
- Available in brass or stainless-steel (ES) versions
- PATENTED design
Technical specifications
- Model: 85-30 SMART
- Dimensions: 95 x 213 mm
- Connection: G1 1/2 (G1.1/2), PED category I
- Material options: brass or stainless steel (ES)
- Max. free flow rates: acetylene ≤ 70 m³/h; fuel gases ≤ 675 m³/h; oxygen ≤ 860 m³/h
- Signal interfaces: NPN open collector, RS485
- Electrical connection: M8, 4-pin
- Device 100% tested at factory
- Not suitable for hazardous/ex classified area installation
