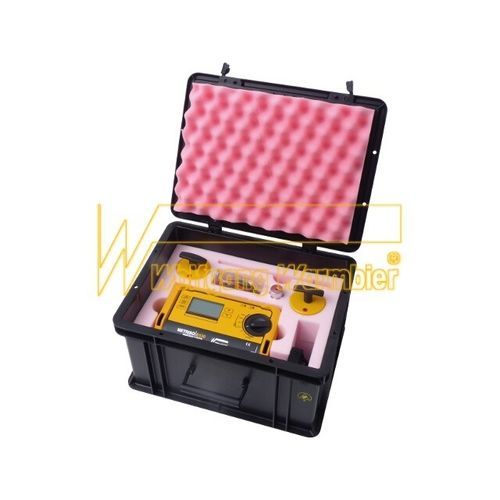

Metriso® B530 - test kit. Suitable for resistance point-to-point and resistance to ground measurements
• Test voltage / Test current: 1 mA< I < 1,3 mA
o High ohmic range: DC 10 volts,100 volts and 500 volts
•Test range:
o low ohmic range: 1 to 10 kOhm
o high ohmic range: 1 kOhm to 199 GOhm
• Operation: Battery operated
• Probes:
o 2x Model 870 (weight: 2,27 kg / ø 63,5 mm) with conductive rubber (grey) and extension,
o 1x hand-held probe Model 45
• complies with IEC 61340-4-1, IEC 61340-2-3, IEC 61340-4-5
• digital high resistance tester
• 2 probes model 870 with extension
• a hand-held probe with connecting cable
• users instructions in German, English and French
• calibration certificate
• conductive carrying case fitted with dissipative pink foam
