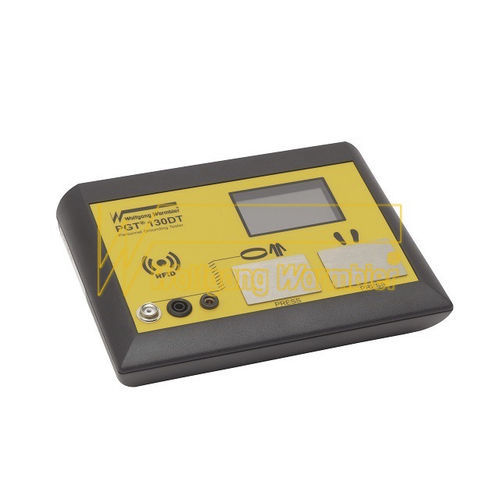

Grounding resistor testing system PGT®130DT

for protective clothingfor shoes

The PGT®130DT is a compact test system for accurate testing and documentation of personnel grounding with shoes,wrist strap and ESD smock according to DIN EN 61340-5-1 as well as ANSI ESD S20.20 and further processing the measurement data. Several devices can be combined in a network and synchronized centrally with the DataTermD software. ID control via integrated RFID reader, data terminal and colour display. The test result is signalled visually and acoustically. A positive or negative result is indicated by a colour change „green/red“ with measured values. Simultaneous testing of wrist strap grounding, right and left shoe through separate measuring circuits. The measurement is carried out via sensor buttons. In connection with people separation systems (e.g. turnstiles), the footwear measurement can be carried out as a „series circuit“ without operating the touch plates(hands-free mode). Lower limit can be switched off for shoe and wristband testing. Can be used as a table-top or wall-mounted unit(For wall mounting the optional wall bracket is required). Configuration setup on the unit via push-button & display or via WEB interface. Mixed operation with PGT®120.COM + DataTerminal DT2, DT3 and TC18 possible. PGT®130.DT Footwear electrode Power supply with EU and US adapter (AC100-240V/5VDC) Manuel(German/English) Calibration certificate (German/English)
