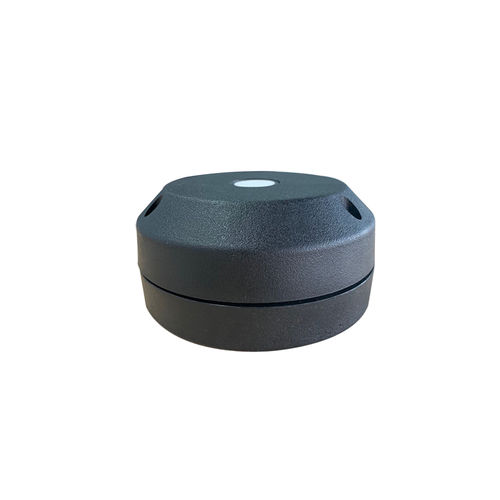

Ultrasonic level sensor PS102-USGM-LR-BT8-SB

for solidsfor liquidsLoRaWAN

The PS102-USGM-LR-BT8 Dual-detection parking occupancy sensor can accurately detect the occupancy status of parking space(s) by dual Ultrasonic and Geomagnetic sensors. When a vehicle pulls into or out through the parking space, the sensor reports status via LoRaWAN technology to LoRaWAN gateway WR322GR-EC-LORAWAN. It supports multiple LoRa band CN470、EU868、AS923、AU915、USS915、KR920、IN865、 RU868 for different region. The sensor is powered by ER26500 lithium battery 8000mAh 3.6v and can work for 2-3 years depending on work mode. The enclosure is IP67 weather protected, and operation temperature is from -20~70C. The PS102 series are ideal for Smart Parking System Solution. Accuracy - 99% Dimension - 115*115*50mm EU868,AS923,US915,USS915,CN470 Wireless Sensitivity - 137dbm@292bps (RX), 5~20dbm(Tx) Wireless Distance - 3KM line of sight Weight - 150g Battery - Non-recharged ER26500 lithium battery 8000mAh 3.6v Battery Life - Up to 3 years(6 transactions per day)
