Metal pendulum impact tester PSD series

for Charpy testingfor IZOD testing

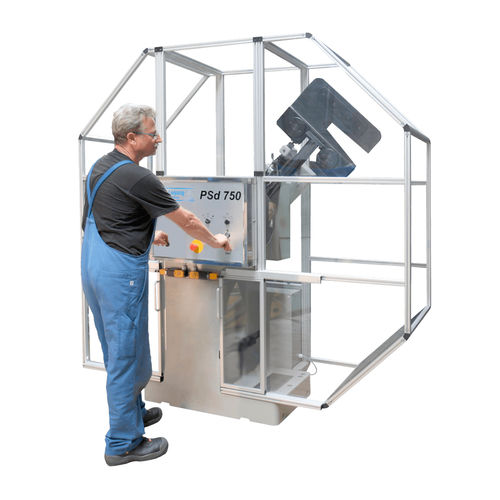

Pendulum Impact Tester PSd 750 Application The pendulum impact tester PSd 750 with a working capacity of up to 750 J is applied for: • - Notched-bar impact tests based on Charpy on steel and other metals according to ISO 148-1 as well as ASTM E23 • - Instrumented Charpy impact tests according to ISO 14556 Features • - Stiff, vibration-optimized, cast iron stand • - Electro-mechanical pendulum hoisting • - Electro-mechanical pendulum pendulum brake • - Electrical safety release of the pendulum • - Digital preselection and display of the working capacity by continuous adjustment of the bearing point • - Protective housing including electronical locking switch for the door • - Exchangeable support plates for different specimen dimensions • - Precise measurement results also in low energy level
