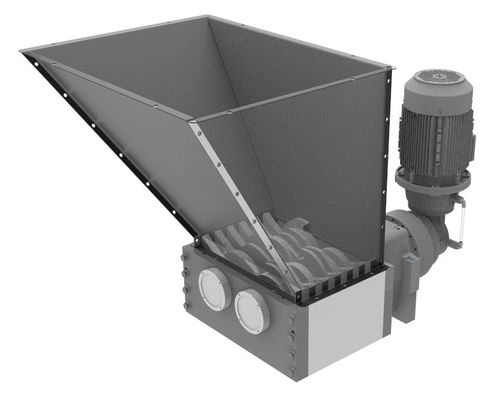

Secondary shredder SE10

double shaftpaperplastic

GRINDING BODY ln steel complete with 2 hexagonal shafts counter-rotating at different speed • Connecting frame in welded C-section steel bar Right-angle or in-line planetary gearbox • Colours gray RAL 7024 and RAL 7035 electric components • Safety self-controlling module for safety devices supervision • Electric motor 7,5 KW – 400V/50Hz (protection degree IP55 and insulation class F) • Electric control board (protection degree IP55) • Multifunction PLC • Automatic reversal device in case of overloading • Programming of number of inversions OPTIONAL • Industry 4.0 Smartbox One module • Customizable loading hopper • Customizable support • Easy removal of scrapers • Customizable colours WRS ADVANTAGES • Blades range with different profiles and steel types according to the material to be processed • Shredding body structure (composed of 2 front flanges e 2 sides) in carbon steel with section 60mm • Structural components equipped with dowel pins to facilitate disassembly and re-assembly operations • Scraper hooked to the sides through sliding guides
