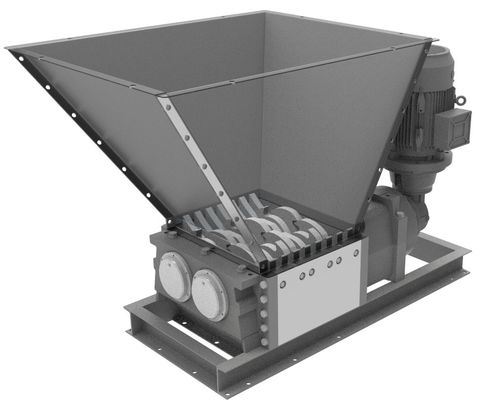

Secondary shredder SE15

double shaftpaperfor PET bottles

GRINDING BODY ln steel complete with 2 hexagonal shafts counter-rotating at different speed • Connecting frame in welded C-section steel bar • Right-angle or in-line planetary gearbox • Colours gray RAL 7024 and RAL 7035 ELECTRIC COMPONENTS •Safety self-controlling module for safety devices supervision •Electric motor 1 1 KW — 400V/50Hz (protection degree IP55 and insulation class F) •Electric control board (protection degree IP55) • Multifunction PLC •Automatic reversal device in case of overloading •Programming of number of inversions optional Industry 4.0 Smartbox One module Customizable loading hopper Hydraulic ram feeder Customizable support Easy removal of scrapers Customizable colours WRS advantages Blades range with different profiles and steel types according to the material to be processed Shredding body structure (composed of 2 front flanges e 2 sides) in carbon steel with section 60mm Structural components equipped with dowel pins to facilitate disassembly and re-assembly operations Scraper hooked to the sides through sliding guides
