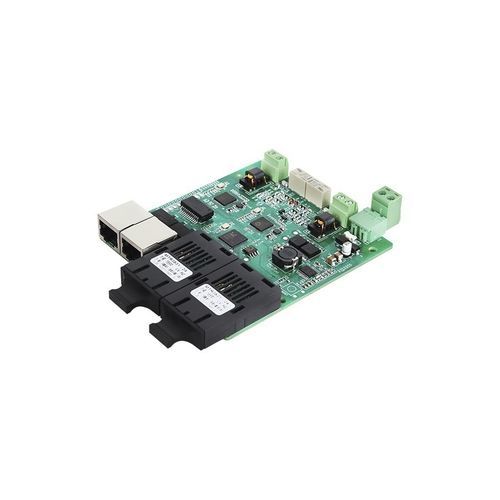

Ethernet extender MES1204

industrialnetwork

The fiber ports support SC/FC/ST connector, single mode/multi-mode, wavelength, and transmission distance options The copper ports support 10/100M auto-sensing, full/half duplex, auto MDI/MDI-X, plug and play, convenient and fast The DSL port is used for long-distance communication through twisted pair cables, extending the transmission distance of Ethernet port up to 1km Comply with the G.993.2 VDSL2 standard that established by the International Telecommunication Union (ITU) Support DC9~24V power input and comply with intrinsic safety circuit design standard Working temperature from -20 ℃ to +75 ℃ The MES1204 series products are dual embedded network extenders designed for specialized industrial communication network dedicated line transmission applications. These products are used in pairs and can transmit Ethernet signals over ordinary cables such as twisted pairs, telephone lines, coaxial cables, etc., allowing network devices to be located at a considerable distance from each other. This solution goes beyond the limitations of traditional Ethernet, extending copper cable networks and reducing network wiring installation costs using existing twisted pair copper resources. The series also features a variety of communication interfaces. It supports configurations with 4*100M copper ports or 2*100M fiber ports+ 2*100M copper ports. The fiber port is 100Base-FX full-duplex single-mode or multi-mode fiber interface, with fiber ports including SC, ST, and FC. The copper ports are 10/100Base-T Ethernet RJ45 ports, each of which has auto-sensing capabilities, supporting full-duplex or half-duplex modes, and can auto MDI/MDI-X connections.
